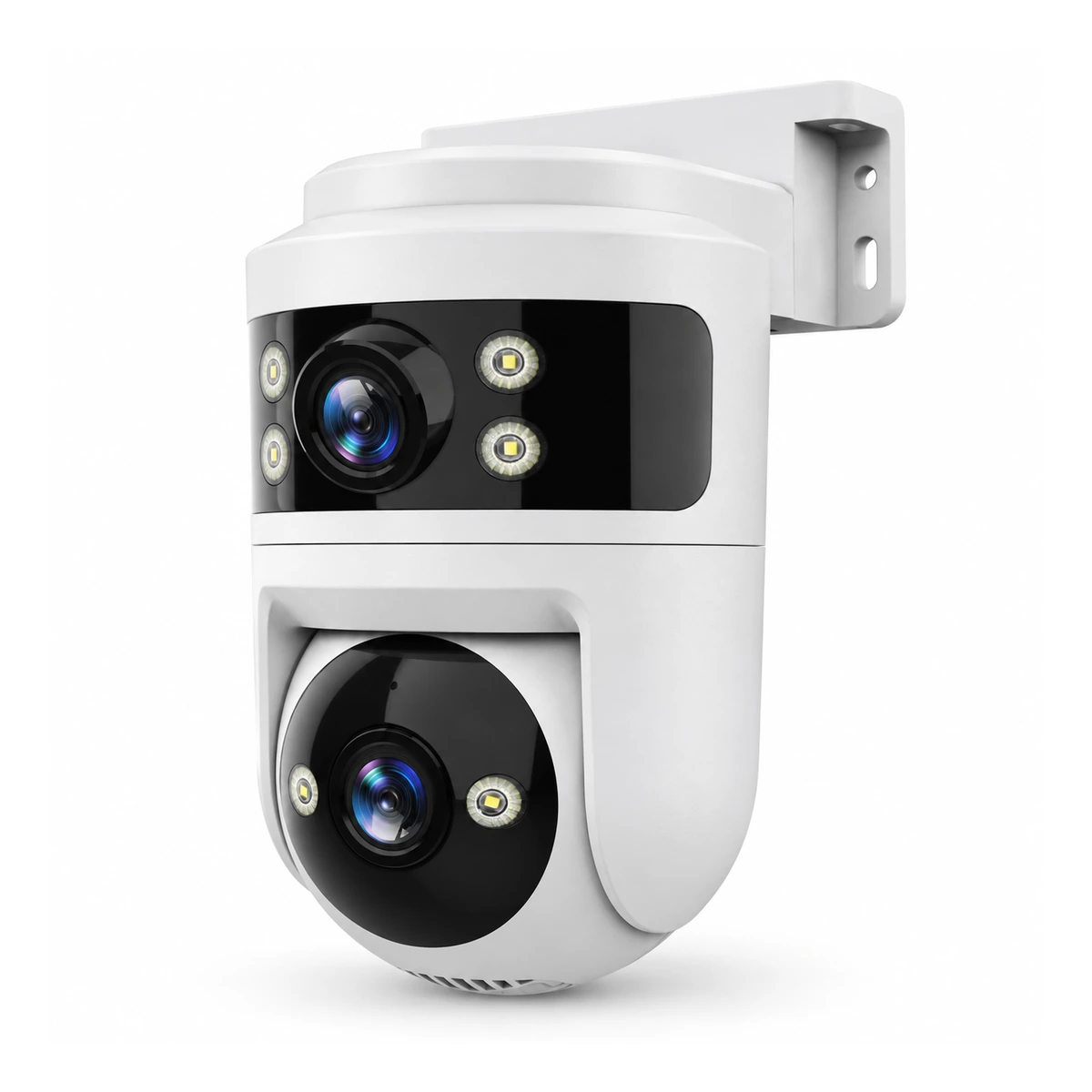

C41D Dual-Lens Outdoor Pan-Tilt Camera combines a fixed upper view with a moving lower lens in an IP65 wall-mounted housing. It is available in 4MP and 8MP configurations with two-way audio, selectable night modes, event detection, WiFi, ONVIF and local storage.
| Model | C41D |
|---|---|
| Resolution options | 4MP or 8MP |
| Camera arrangement | Fixed upper lens and pan-tilt lower lens |
| Housing | IP65 listed in supplied product graphic |
| Network | 2.4GHz / 5GHz WiFi; Bluetooth-assisted setup |
| Storage | MicroSD card up to 256GB |
| Power | 12V DC |
| Compatibility | ONVIF listed |

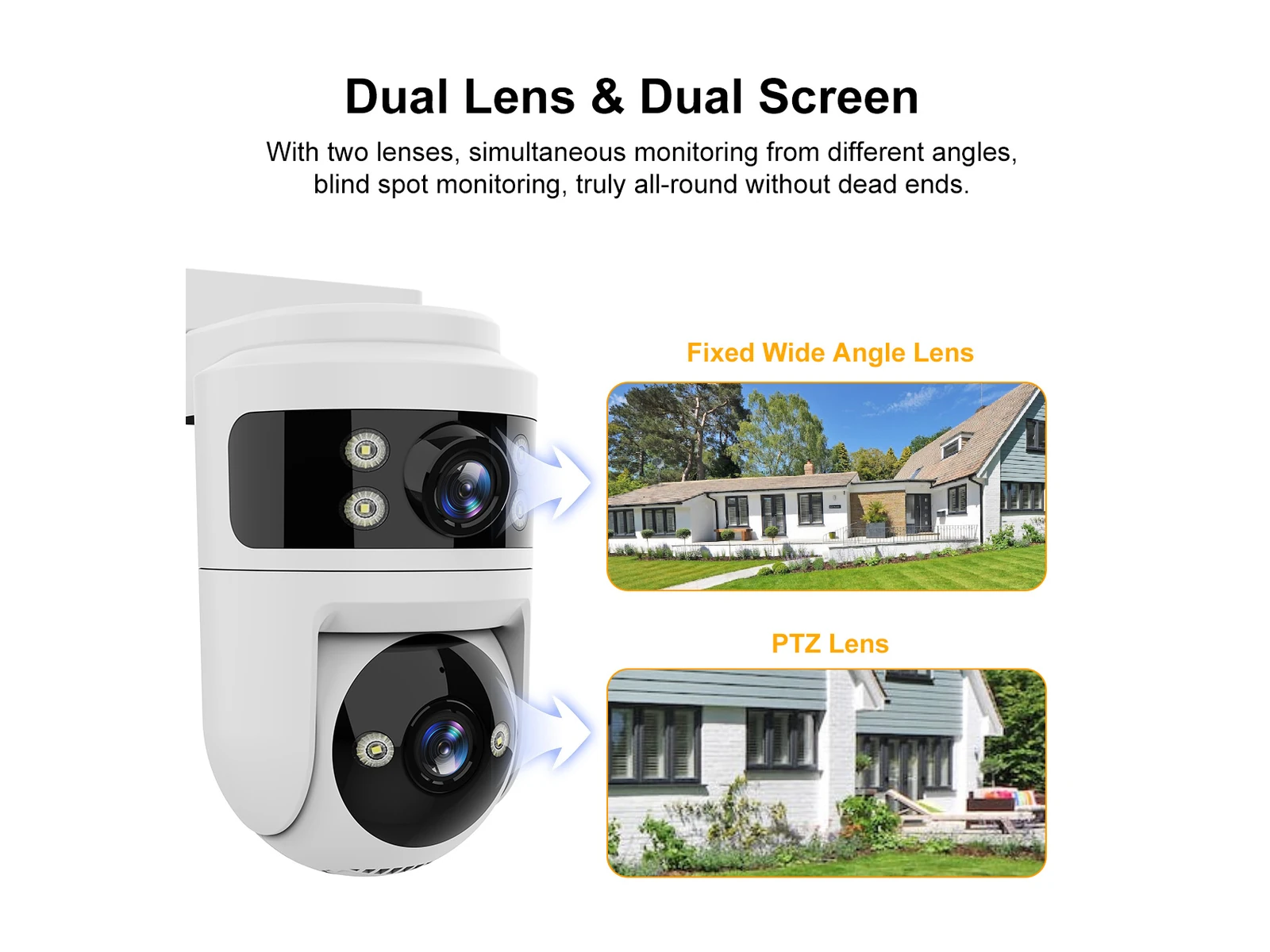

Fixed Overview and Adjustable Detail View
The upper lens holds a fixed view while the lower lens can be moved to inspect another direction. C41D fits courtyards, villas, schools and outdoor parking areas where one wall point needs broader coverage. Select the 4MP or 8MP configuration before approval.
- Confirm the 4MP or 8MP configuration before quoting.
- Protect the power connection and verify WiFi coverage at the mounting point.
- Test both views, pan-tilt movement, alerts, audio and night modes.
Dual-Light Night Modes and Event Alerts
C41D lists smart, full-color and infrared night modes, along with human, motion and sound detection. Mobile alerts and two-way audio support remote response. Local recording can use a microSD card up to 256GB, and ONVIF is listed for compatible systems.
| Detection | Human, motion and sound detection |
|---|---|
| Alerts | Mobile alarm notifications |
| Audio | Two-way audio |
| Night viewing | Smart, full-color and infrared modes |
| Storage | MicroSD up to 256GB |
| Network | 2.4GHz / 5GHz WiFi |
| Power | 12V DC |
| Protocol | ONVIF listed |
Mounting Size and Order Checks
The supplied size graphic lists an 85 mm camera width, 110 mm depth and 150 mm height. The standard set contains one dual-light camera, one instruction manual and a power supply. The packing sheet lists 20 units per carton and a gross unit weight of 650 g.
| Resolution | 4MP base price; 8MP option available |
|---|---|
| Standard set | Camera, manual and power supply |
| Camera size shown | 85 × 110 × 150 mm |
| Color box | 193 × 170 × 105 mm |
| Listed unit gross weight | 650 g |
| Master carton | 20 units; 552 × 405 × 365 mm |
Use Notes
Frequently Asked Questions
Which resolutions are available for the C41D Dual-Lens Outdoor Pan-Tilt Camera?
C41D Dual-Lens Outdoor Pan-Tilt Camera is offered in listed 4MP and 8MP configurations. The displayed wholesale tiers use the 4MP base cost. Request a separate quotation for the 8MP option, then check both lens views, night modes and current firmware on the approved sample before production.
How does the C41D Dual-Lens Outdoor Pan-Tilt Camera cover an area?
C41D Dual-Lens Outdoor Pan-Tilt Camera combines a fixed upper lens with a moving lower lens. The supplied graphic presents a fixed wide-angle view plus a pan-tilt view. Test movement range, app controls and both streams with the intended mounting position before placing a wholesale order.
Which network and storage options work with the C41D Dual-Lens Outdoor Pan-Tilt Camera?
C41D Dual-Lens Outdoor Pan-Tilt Camera is listed for 2.4GHz and 5GHz WiFi, Bluetooth-assisted setup, ONVIF and a microSD card up to 256GB. Confirm router compatibility, card class, recording behavior and recorder integration on the approved production sample before placing an order.
What is the packing information for the C41D Dual-Lens Outdoor Pan-Tilt Camera?
C41D Dual-Lens Outdoor Pan-Tilt Camera is listed with one camera, one instruction manual and a power supply. The color box measures 193 × 170 × 105 mm, the listed gross unit weight is 650 g, and a master carton contains 20 units. Confirm resolution and plug type before ordering.
