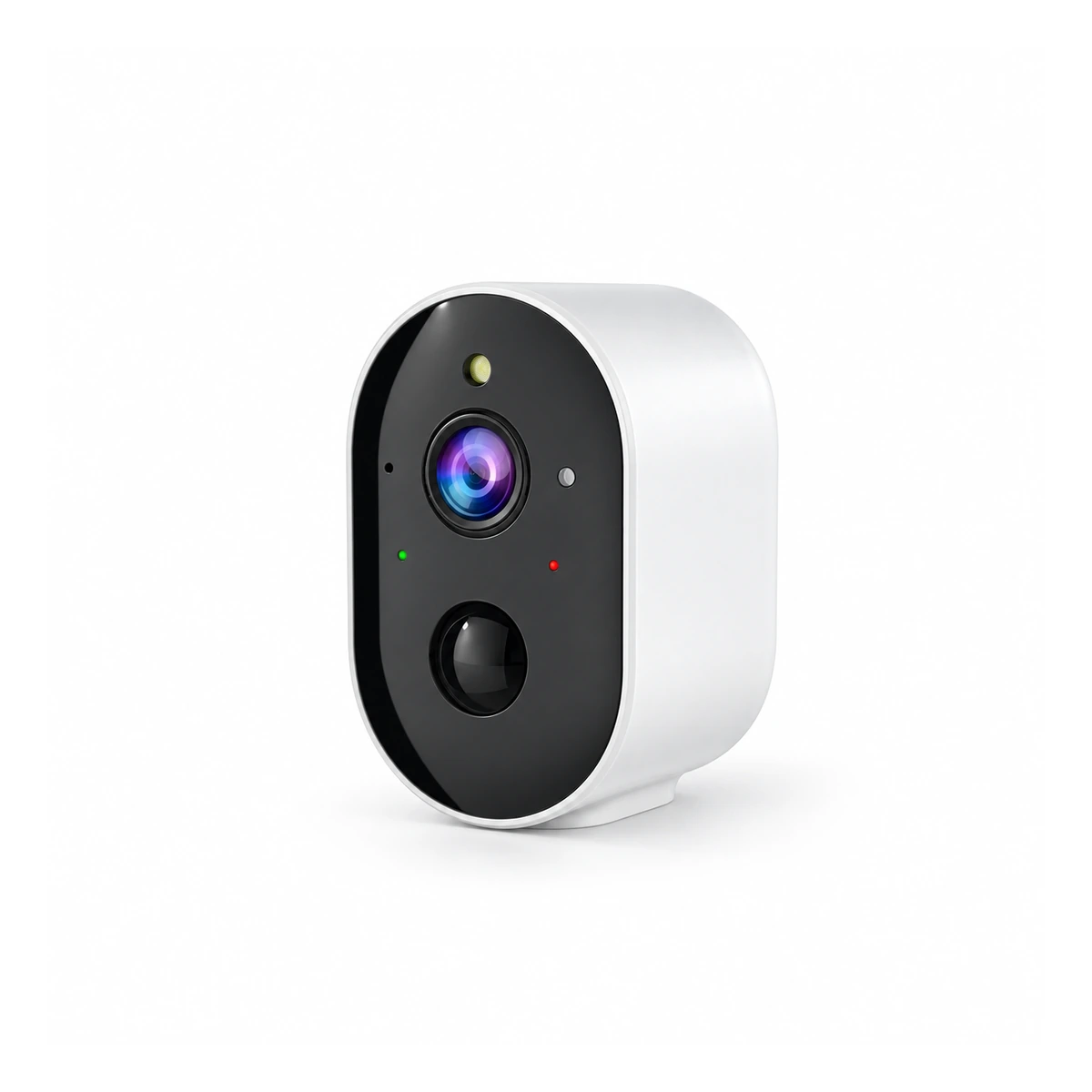

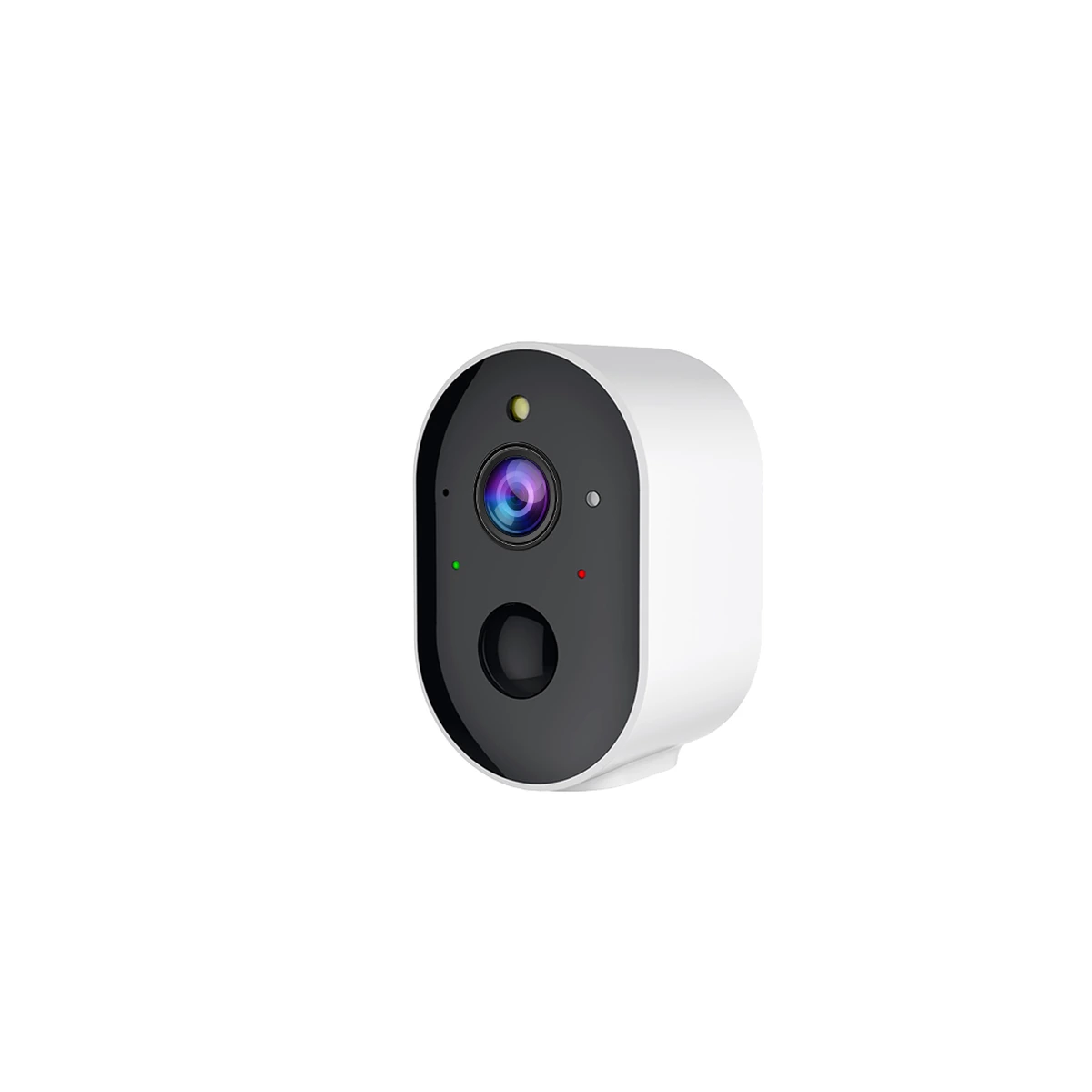

S5L-4G 3MP Low-Power 4G Security Camera is designed for locations that use a cellular data connection instead of local WiFi. The supplied specification lists 2304 × 1296 video at 15 fps, PIR wake-up, human detection, two-way audio, infrared and full-colour night viewing, and T-Flash storage up to 128 GB.
| Model | S5L-4G |
|---|---|
| Product type | Low-power 4G security camera |
| Image sensor | 3 MP, 1/3-inch sensor |
| Main stream | 2304 × 1296 at 15 fps |
| Lens and view | 2.8 mm lens; 135° diagonal viewing angle |
| App | Tuya |
| Storage | T-Flash card up to 128 GB; cloud storage listed |
| Cellular versions | Domestic Cat1 and European LTE-FDD band sets are listed |
Cellular Monitoring for Sites Without Local WiFi
S5L-4G uses a compatible 4G data connection and can wake from the app or PIR detection. It suits gates, farms, temporary sites and other locations where cellular coverage is available. Confirm the destination network bands, SIM and APN settings before approving an order.
- Confirm the LTE band set for the destination country and carrier.
- Confirm whether the order uses the listed 5200 mAh or 9000 mAh battery configuration.
- Test SIM activation, wake-up time, push alerts, video and audio on an approved sample.
PIR Alerts, Night Viewing and Two-Way Audio
S5L-4G combines PIR sensing with human detection and adjustable sensitivity. The supplied specification also lists infrared and full-colour night viewing, a built-in microphone, a speaker and G711A audio compression for two-way communication.
| Detection | PIR human detection with high, medium and low sensitivity |
|---|---|
| Night viewing | Infrared and full-colour day/night modes |
| Audio | Built-in -38 dB microphone; speaker output listed as 8 Ω 1.84 W or 4 Ω 3 W |
| Encoding | H.264 / MJPEG / JPEG |
| Bitrate control | CBR / VBR, 128 to 1024 kbps |
| Power input | DC 5V ±5% |
| Operating temperature | -10°C to 55°C |
| Operating humidity | Below 90% |
Packing Data and Configuration Checks

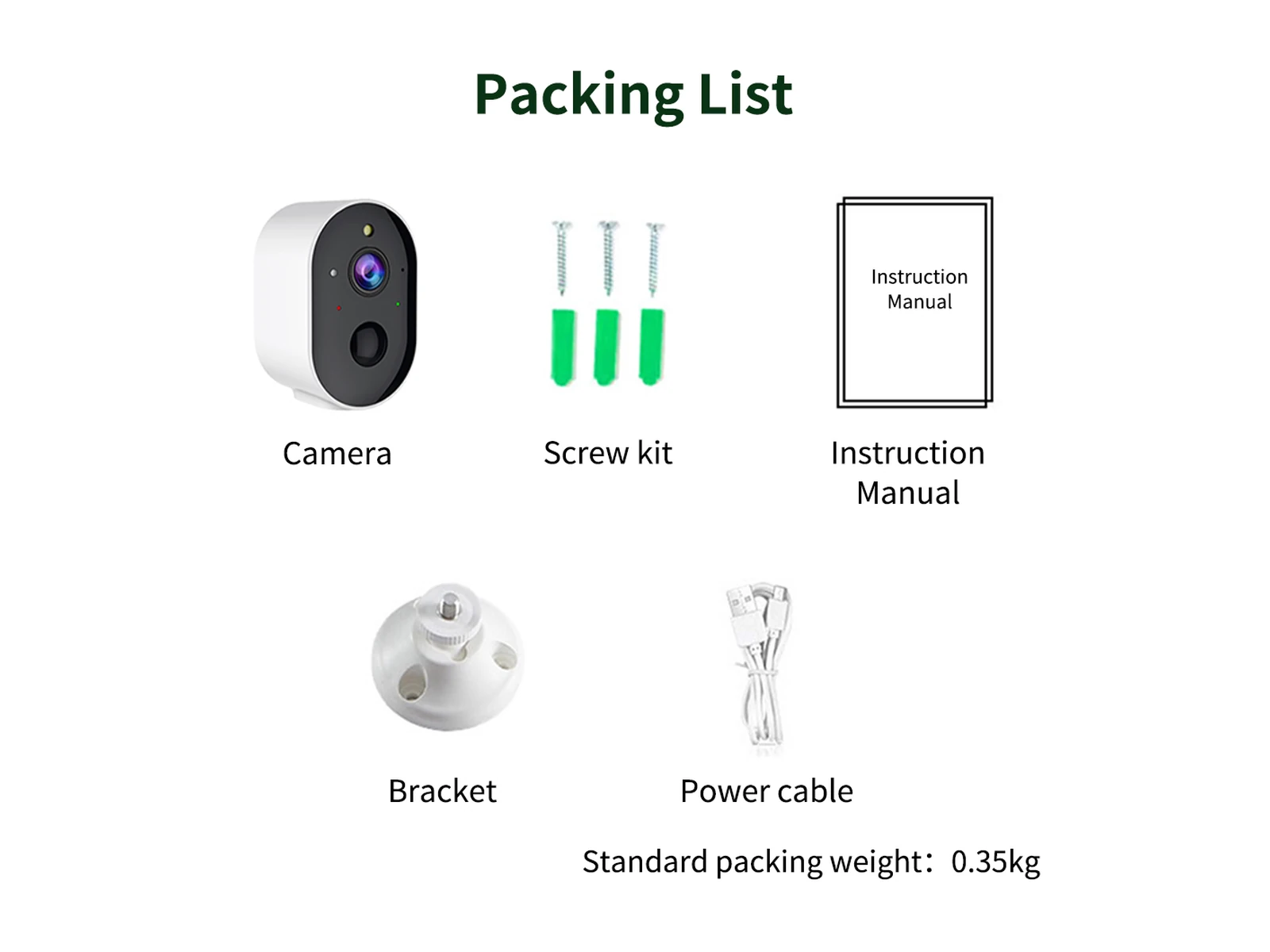

The supplied packing graphic lists the camera, bracket, power cable, screw kit and instruction manual. The separate packing file lists a 0.35 kg single-unit weight and 14 × 12 × 8 cm single-unit size. Battery capacity, network version and final package contents should be confirmed before production.
| Listed supply | Camera, bracket, power cable, screw kit and instruction manual |
|---|---|
| Single-unit size | 14 × 12 × 8 cm |
| Listed single-unit weight | 0.35 kg |
| Master carton | 33 units; 50 × 37 × 27.5 cm; 18.08 kg |
| Sample test | SIM and APN setup, PIR alerts, video, audio, night modes and storage |
Use Notes
Frequently Asked Questions
Which mobile networks work with S5L-4G 3MP Low-Power 4G Security Camera?
S5L-4G 3MP Low-Power 4G Security Camera is listed with separate domestic Cat1 and European LTE-FDD band sets. Carrier support depends on the exact hardware version, local bands, SIM status and APN settings. Confirm the destination network and test an approved sample with the intended SIM before ordering.
What video resolution does S5L-4G 3MP Low-Power 4G Security Camera support?
S5L-4G 3MP Low-Power 4G Security Camera uses a 3-megapixel, 1/3-inch sensor. The supplied specification lists a 2304 × 1296 main stream at 15 fps and a 360P substream at 15 fps. Image quality, bitrate and night performance should be checked on the approved sample.
Which battery is supplied with S5L-4G 3MP Low-Power 4G Security Camera?
S5L-4G 3MP Low-Power 4G Security Camera source material lists 5200 mAh and 9000 mAh battery configurations, but the wording does not establish one fixed standard pack. Confirm capacity, cell type, battery inclusion, charging method and expected runtime for the exact order before production.
Does S5L-4G 3MP Low-Power 4G Security Camera support local storage?
S5L-4G 3MP Low-Power 4G Security Camera supports a T-Flash card up to 128 GB and also lists cloud storage. Confirm whether a card is included, which card class is required, how recordings overwrite, and whether cloud service is available in the destination market with the current app and firmware.
Which alert features does S5L-4G 3MP Low-Power 4G Security Camera include?
S5L-4G 3MP Low-Power 4G Security Camera supports PIR wake-up, human detection, adjustable detection sensitivity and mobile push notifications. The source also lists infrared and full-colour night viewing. Detection range, notification delay, wake-up time and night image quality should be verified at the intended mounting position.
