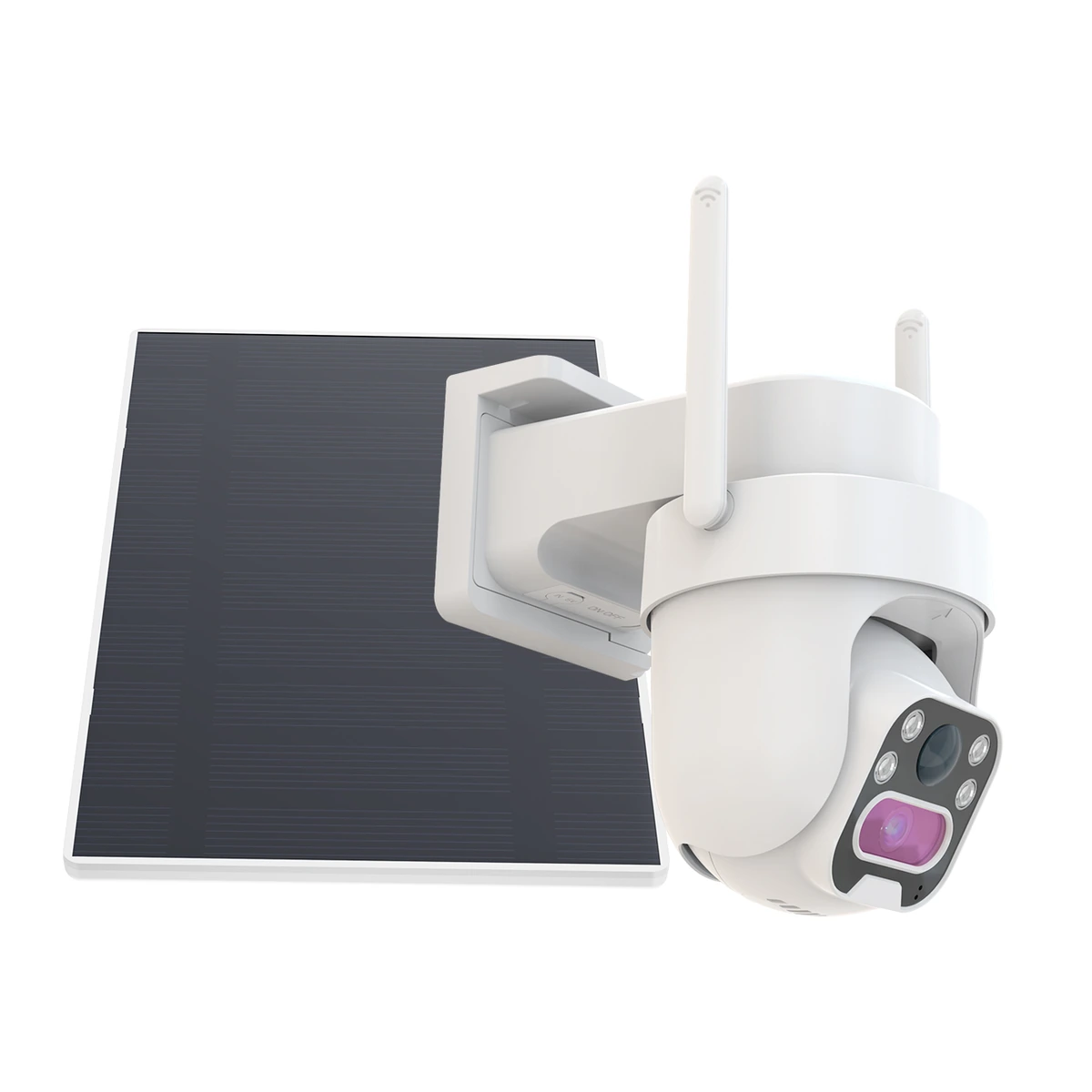

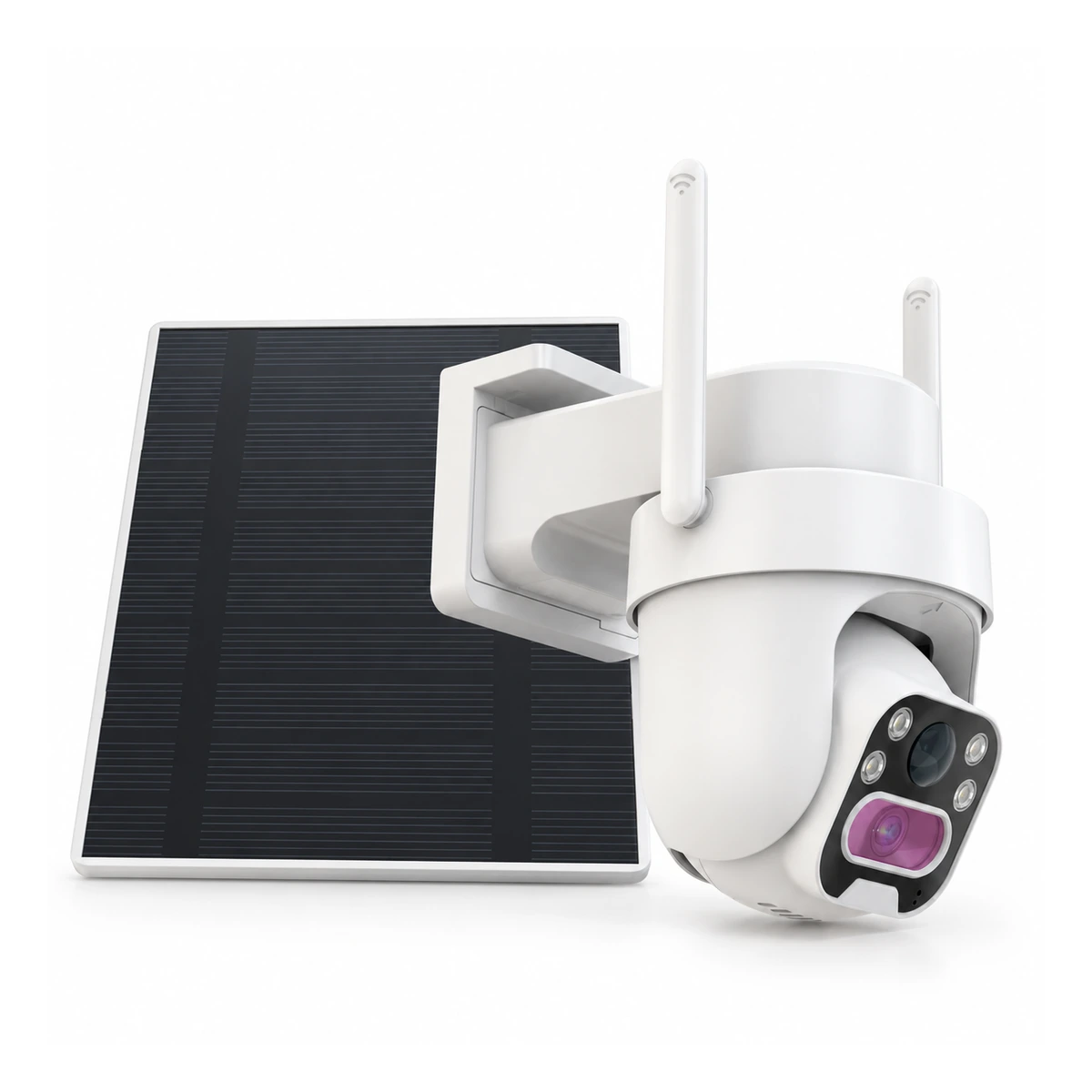

C45L 4MP Solar Pan-Tilt Security Camera combines a 2560 × 1440 sensor, 2.4 GHz WiFi, a 3 W external solar panel and motorized viewing control. The supplied specification lists PIR and human detection, two-way audio, infrared and colour night modes, an IP65 camera housing and TF-card storage up to 128 GB.
| Model | C45L |
|---|---|
| Image sensor | 1/2.8-inch 4 MP CMOS |
| Video | 2560 × 1440 at 15 fps |
| Lens and view | 4.0 mm F2.0; 106.6° diagonal field of view |
| Pan and tilt | 0° to 355° pan; 0° to 90° tilt |
| Wireless network | 2.4 GHz IEEE 802.11 b/g/n |
| Storage | TF card up to 128 GB; cloud storage listed |
| Apps | Tuya Smart and Smart Life |
Wide Outdoor Coverage with Solar Support
The motorized head covers up to 355 degrees horizontally and 90 degrees vertically. The 3 W solar panel uses a 2 m Type-C cable, allowing the panel and camera to be positioned separately. Mounting structure, sunlight, WiFi strength and event frequency will affect daily operation.
- Place the solar panel where it receives useful daylight and keep the Type-C connection protected.
- Confirm stable 2.4 GHz WiFi at the mounting point; 5 GHz WiFi and 4G SIM are not listed.
- Test pan, tilt, PIR alerts, audio, night modes and storage on an approved sample.
PIR Detection, Two-Way Audio and Night Modes

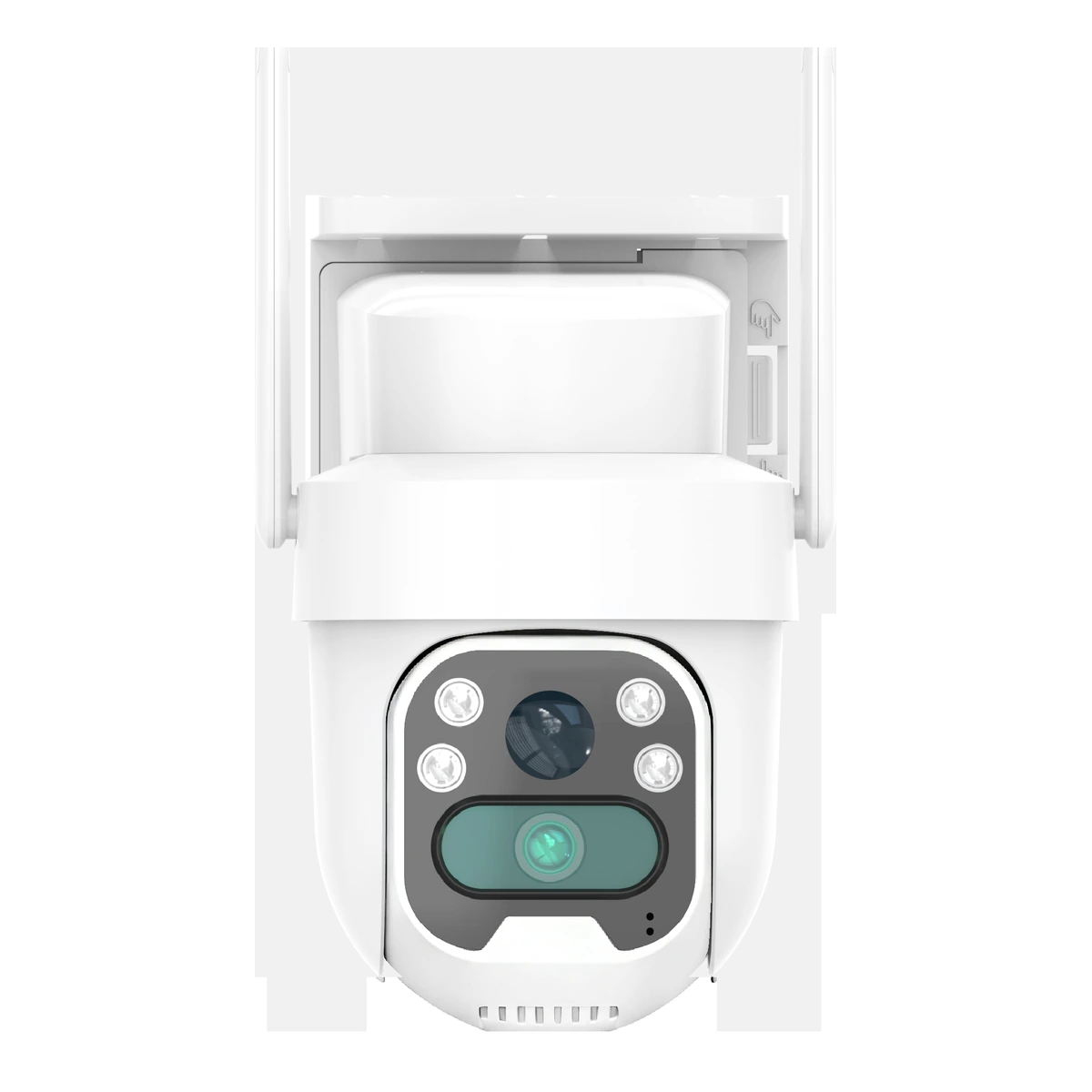

C45L lists motion detection and human detection with mobile alarm pushes. Four infrared lights and four white lights support black-and-white and colour night modes. The camera has a built-in microphone and speaker for two-way audio. Automatic moving-target tracking is not listed in the specification.
| Detection | Motion detection, human detection and PIR up to 8 m at 100° |
|---|---|
| Night viewing | Four infrared lights and four white lights |
| Audio | Built-in microphone and speaker; two-way audio |
| Encoding | H.264, dual stream, 32 kbps to 1 Mbps |
| Battery | 7800 mAh lithium battery |

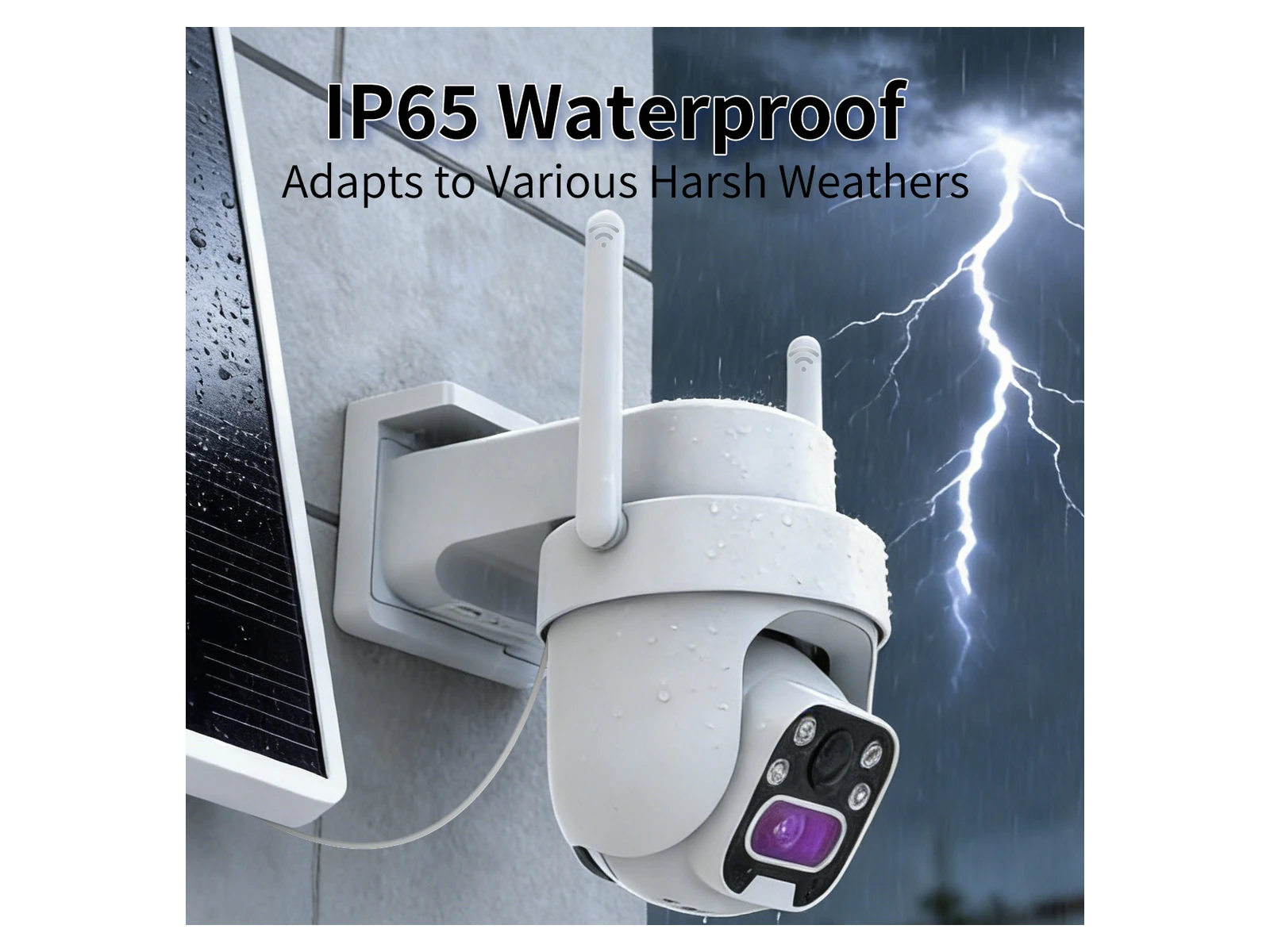

| Camera protection | IP65 and IK08 |
| Solar panel | 3 W, IP66, up to 7.2 V / 520 mA, 2 m Type-C cable |
| Operating temperature | -10°C to 45°C |
Included Hardware and Compatibility Limits
The supplied package graphic shows the C45L camera, 3 W solar panel with 2 m Type-C cable, quick guide and mounting screws. The specification lists a hanging bracket and screw pack. A power adapter and TF card are not listed as included. Confirm battery, packaging and accessories before production.
| Listed supply | Camera, solar panel, bracket, screw pack and quick guide |
|---|---|
| Not listed as included | Power adapter and TF card |
| Network limits | No 5 GHz WiFi, 4G SIM, RJ45, wired networking or PoE |
| Platform support listed | Amazon Alexa, Google Home and WebRTC; no ONVIF |
| Sample test | WiFi onboarding, pan and tilt, PIR alerts, video, audio, night modes and storage |
Use Notes
Frequently Asked Questions
What video resolution does C45L 4MP Solar Pan-Tilt Security Camera support?
C45L 4MP Solar Pan-Tilt Security Camera uses a 1/2.8-inch 4-megapixel CMOS sensor and records 2560 × 1440 video at 15 fps. The supplied specification lists H.264 encoding and dual streams. Confirm bitrate, image settings and night performance on the approved sample and current firmware.
Which network works with C45L 4MP Solar Pan-Tilt Security Camera?
C45L 4MP Solar Pan-Tilt Security Camera connects through 2.4 GHz IEEE 802.11 b/g/n WiFi. The supplied specification lists no 5 GHz WiFi, 4G SIM, RJ45, wired Ethernet or PoE support. Test router compatibility, onboarding and signal strength at the intended mounting point before ordering.
How far can C45L 4MP Solar Pan-Tilt Security Camera rotate?
C45L 4MP Solar Pan-Tilt Security Camera supports horizontal movement from 0 to 355 degrees and vertical movement from 0 to 90 degrees. The specification lists six preset positions but does not list automatic moving-target tracking or patrol. Test controls and preset behaviour with the current firmware.
What powers C45L 4MP Solar Pan-Tilt Security Camera?
C45L 4MP Solar Pan-Tilt Security Camera uses a listed 7800 mAh lithium battery and a 3 W external solar panel. The panel specification lists IP66 protection, up to 7.2 V and 520 mA, a 2 m cable and Type-C connection. Runtime depends on triggers, signal and sunlight.
Which storage options work with C45L 4MP Solar Pan-Tilt Security Camera?
C45L 4MP Solar Pan-Tilt Security Camera supports a TF card up to 128 GB and lists cloud storage and offline recording. A TF card is not listed as included. Confirm card class, encrypted H.264 recording, overwrite behaviour, cloud terms and regional availability on the approved sample.
