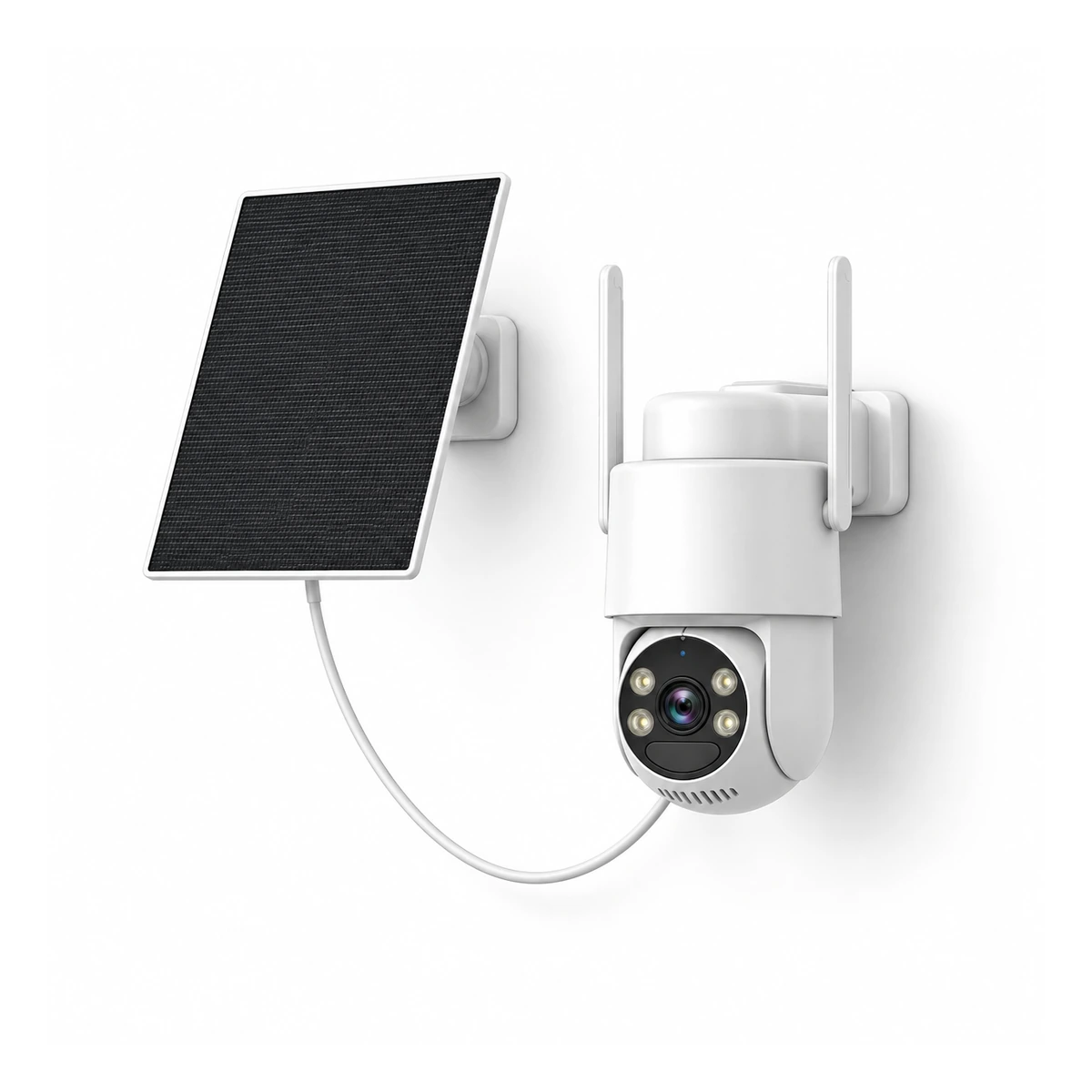

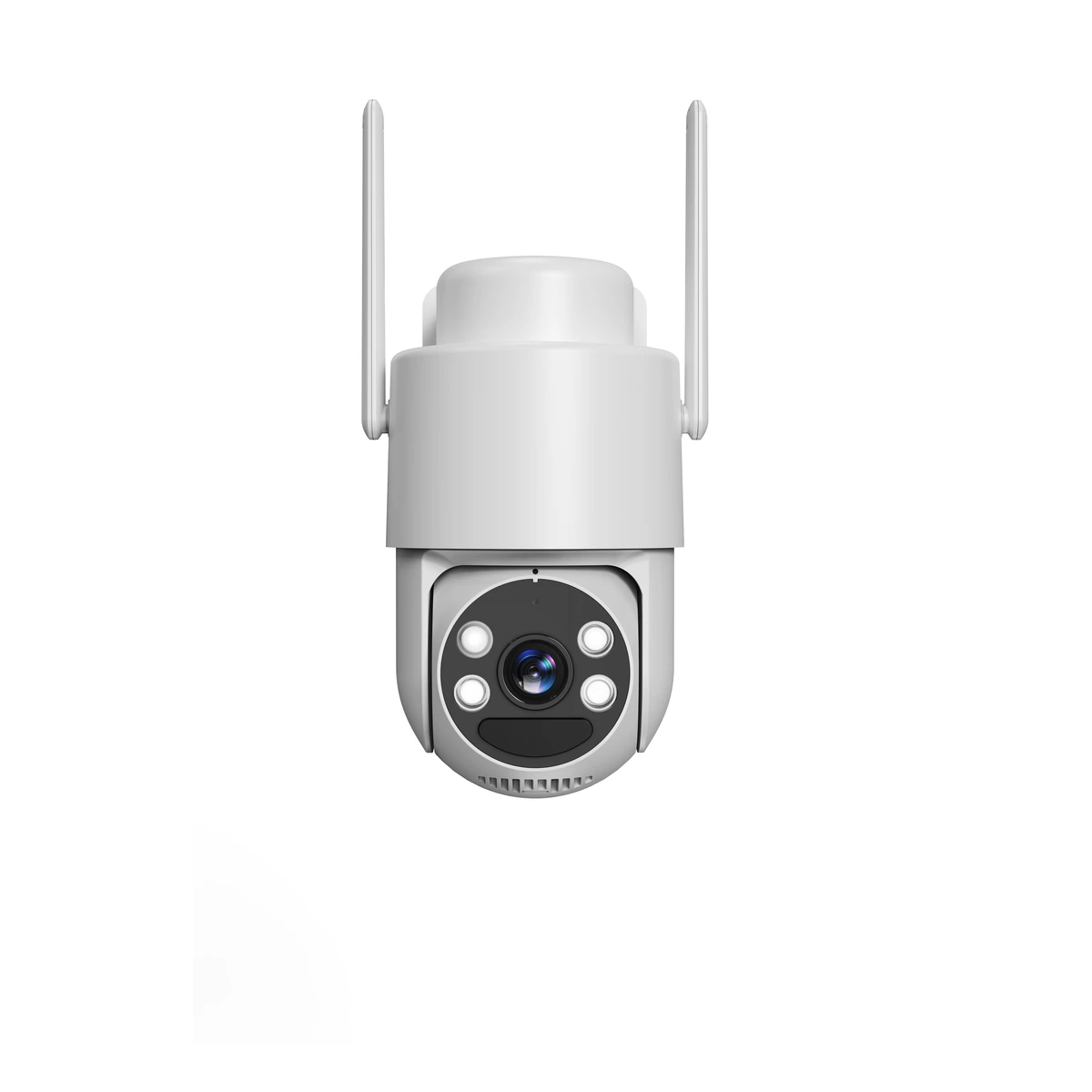

C42L 4MP Solar Pan-Tilt WiFi Camera combines motorized viewing with a 7800mAh battery and separate 3W solar panel. It uses 2.4GHz WiFi with Tuya Smart or Smart Life and supports PIR alerts, siren settings, smart dual-light night modes and local storage.
| Model | C42L |
|---|---|
| Resolution | 4MP base; 5MP option available |
| Network | 2.4GHz WiFi; Bluetooth-assisted setup |
| Apps | Tuya Smart and Smart Life |
| Battery | 7800mAh lithium battery |
| Solar panel | 3W external panel |
| PIR distance | Up to 8 m listed |
| Storage | MicroSD card up to 128GB |
Motorized Outdoor View with Solar Support

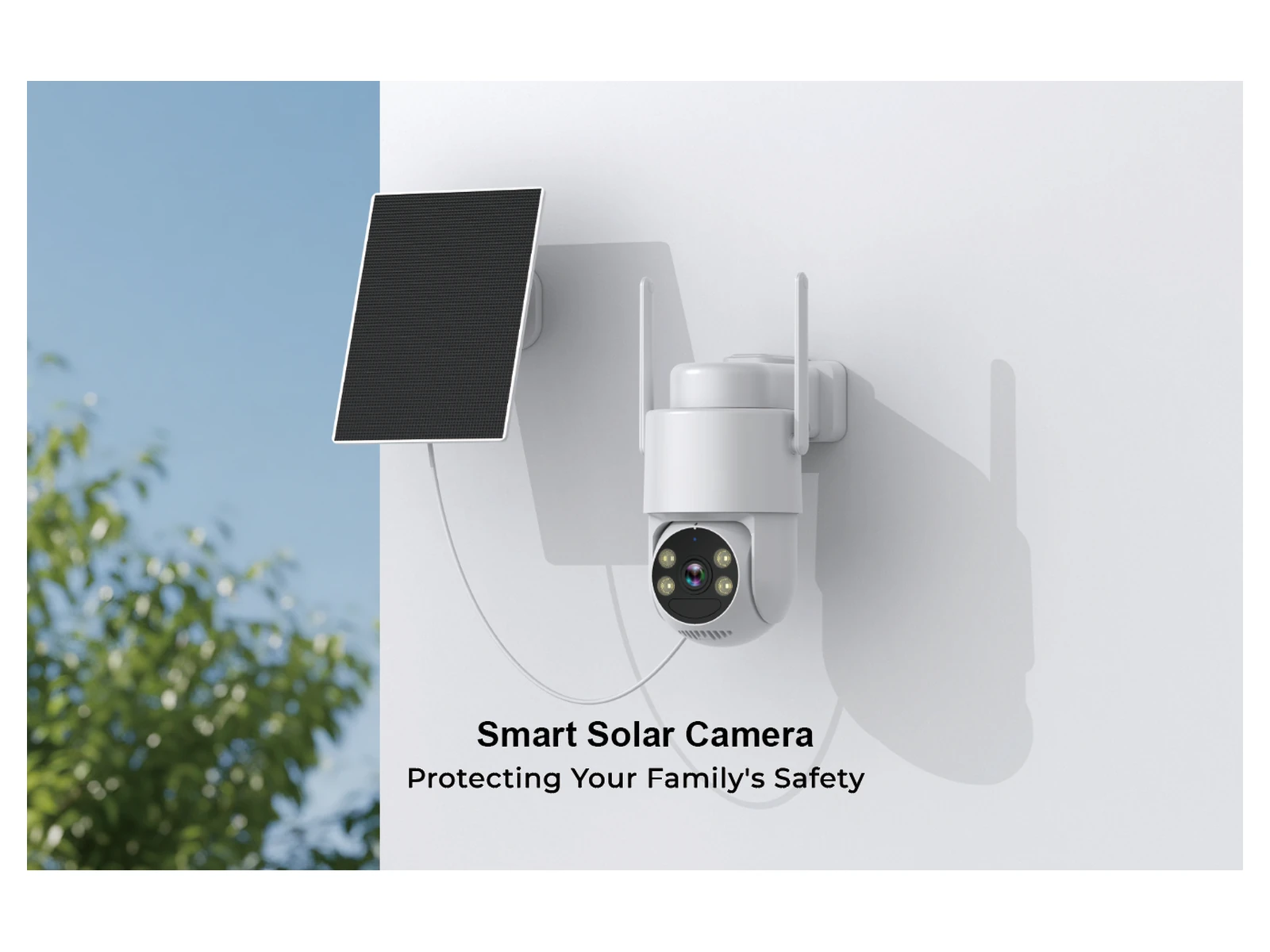

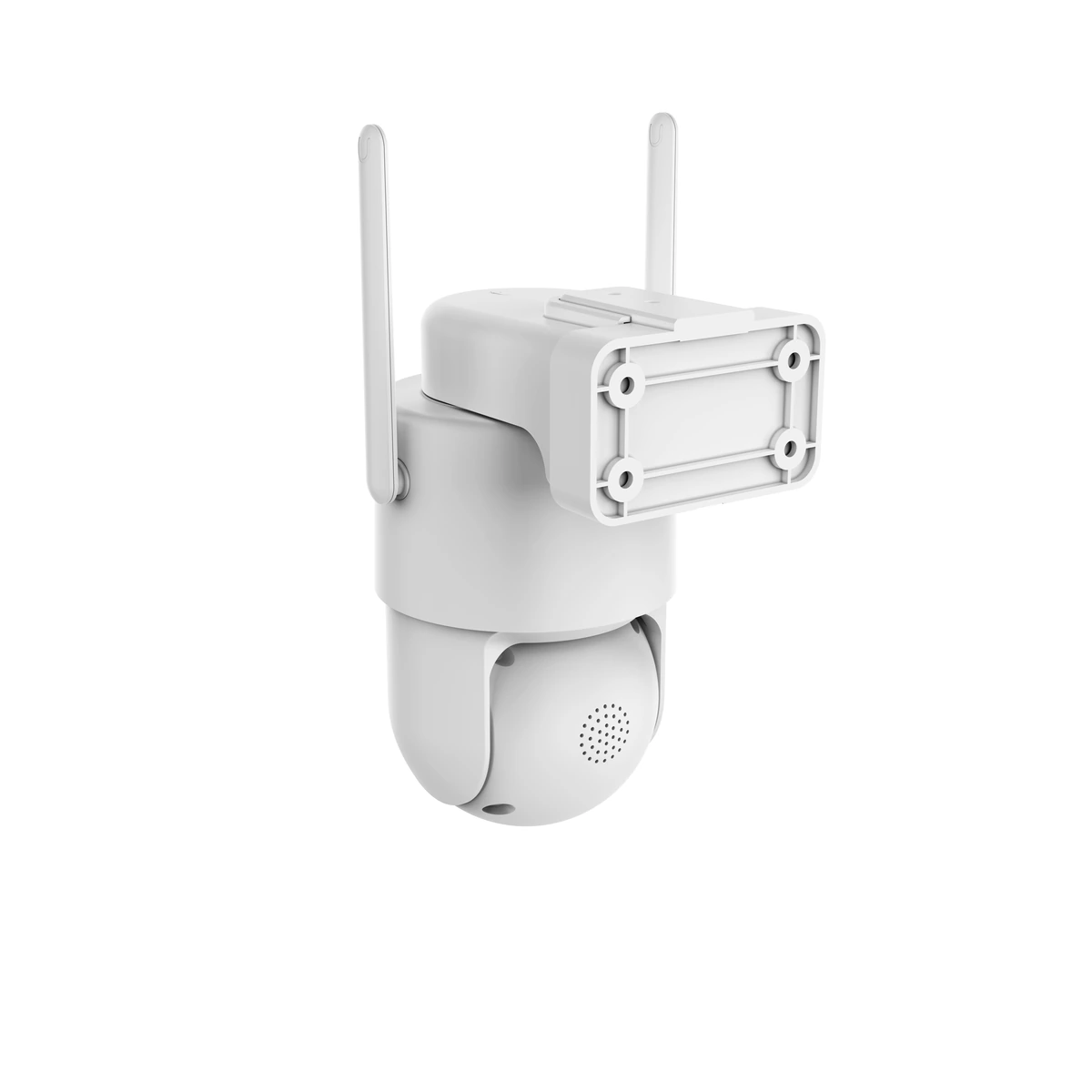

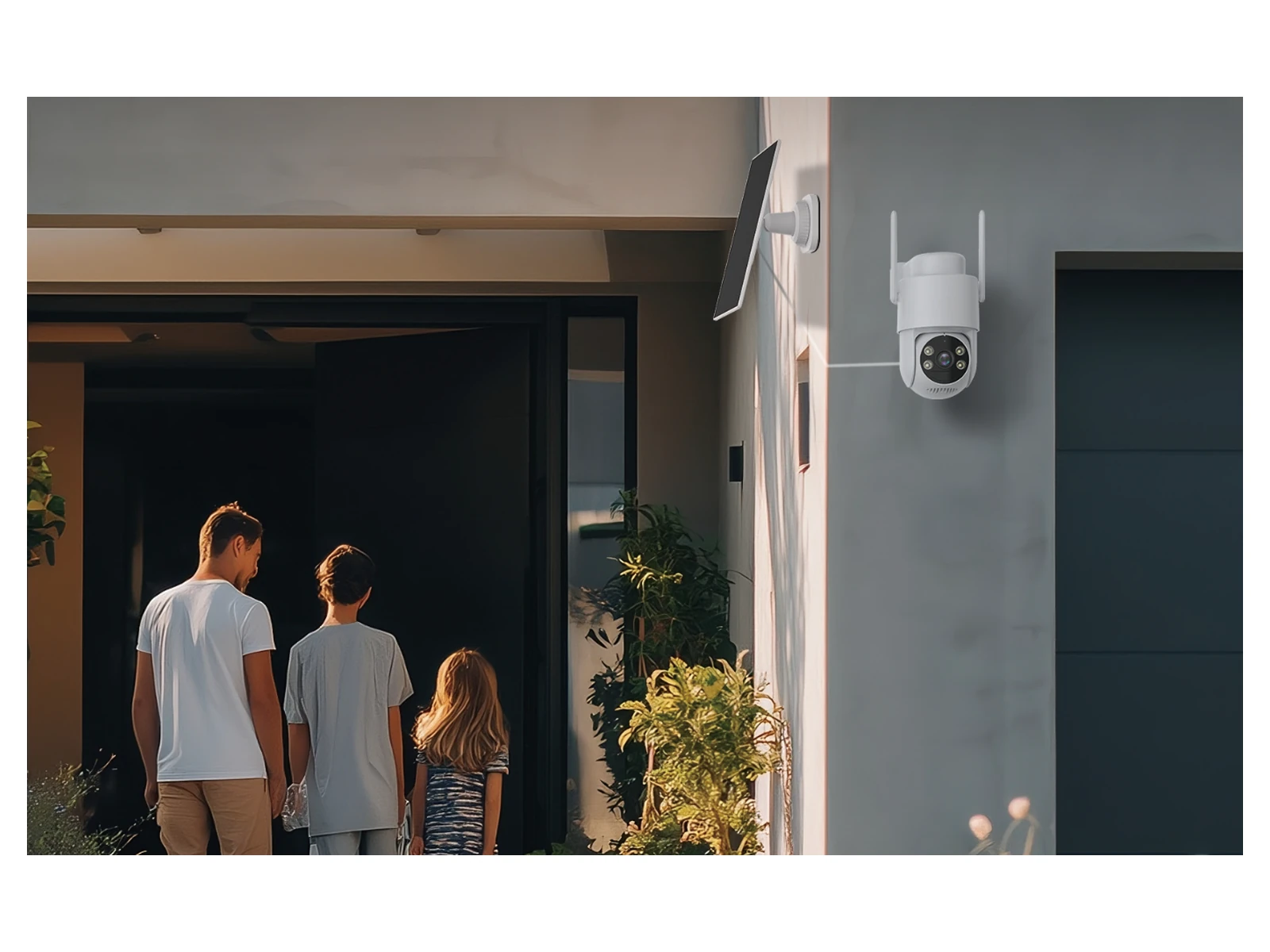

C42L uses a separate solar panel and a quick-mount camera bracket for wall or ceiling positions. The listed standby range is six to seven months. Runtime and charging depend on event frequency, live viewing, motor use, night lighting, WiFi strength, temperature and sunlight.
- Keep the panel in useful daylight and protect the cable connection.
- Confirm stable 2.4GHz WiFi at the selected mounting point.
- Test pan-tilt movement, PIR alerts, night modes, audio, storage and charging.
PIR Detection, Siren and Smart Dual Lighting
C42L lists PIR detection up to 8 m, siren and alarm-sound settings, infrared night viewing and a smart dual-light mode. When an alarm is detected at night, the white light can switch on for color video. A microSD card up to 128GB supports local recording.
| Detection | PIR detection up to 8 m listed |
|---|---|
| Alerts | Mobile notifications with siren options |
| Audio | Two-way audio supported |
| Night viewing | Infrared and smart dual-light color modes |
| Storage | MicroSD up to 128GB |
| Battery | 7800mAh |
| Standby | Six to seven months listed |
| Mounting | Wall or ceiling quick-mount bracket |
Solar Kit and Carton Details

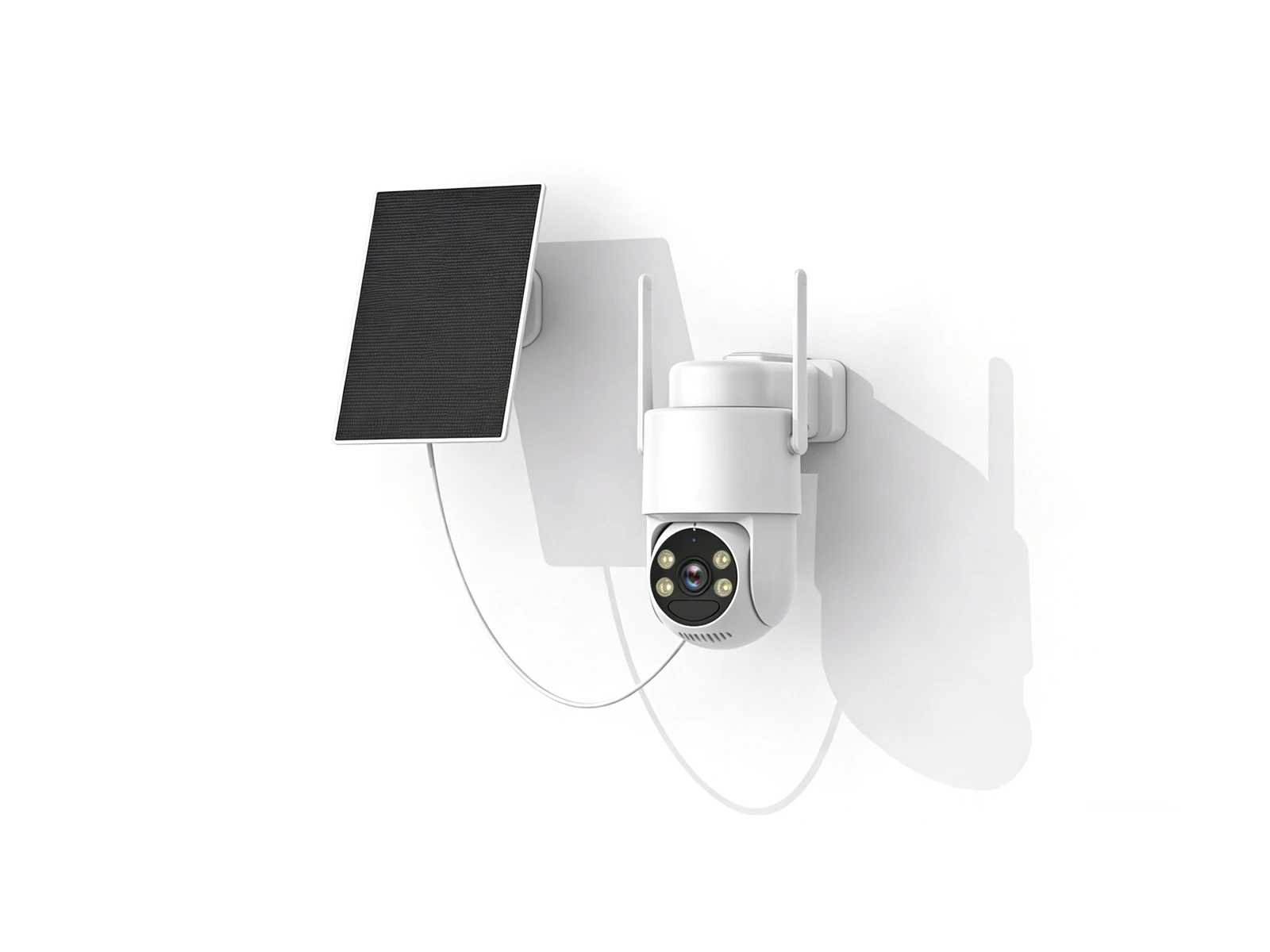

The listed C42L base set contains one camera, one instruction manual, one 3W solar panel and two brackets. The color box measures 190 × 160 × 123 mm, the listed gross unit weight is 830 g, and a master carton contains 20 units. The 5MP option is quoted separately.
| Resolution | 4MP base price; 5MP option available |
|---|---|
| Standard set | Camera, manual, 3W solar panel and two brackets |
| Color box | 190 × 160 × 123 mm |
| Listed unit gross weight | 830 g |
| Master carton | 20 units; 482 × 388 × 350 mm |
| Sample check | WiFi, pan-tilt, PIR, audio, night modes, storage and charging |
Use Notes
Frequently Asked Questions
Which resolutions are available for the C42L 4MP Solar Pan-Tilt WiFi Camera?
C42L 4MP Solar Pan-Tilt WiFi Camera uses the 4MP base configuration for the displayed wholesale tiers, and a 5MP option is also listed. Request a separate 5MP quotation, then check image quality, motor controls, night modes and current firmware on the approved sample before production.
How is the C42L 4MP Solar Pan-Tilt WiFi Camera powered?
C42L 4MP Solar Pan-Tilt WiFi Camera uses a listed 7800mAh lithium battery and a separate 3W solar panel. The supplied sheet states six to seven months of standby. Actual runtime depends on alerts, live viewing, motor use, night lighting, signal strength, temperature and sunlight.
Which network and storage options work with the C42L 4MP Solar Pan-Tilt WiFi Camera?
C42L 4MP Solar Pan-Tilt WiFi Camera connects through 2.4GHz WiFi and supports Bluetooth-assisted setup with Tuya Smart or Smart Life. It also supports a microSD card up to 128GB. Confirm card class, recording behavior, app availability and router compatibility before production.
What is included with the C42L 4MP Solar Pan-Tilt WiFi Camera?
C42L 4MP Solar Pan-Tilt WiFi Camera is listed with one camera, one instruction manual, one 3W solar panel and two brackets. The color box measures 190 × 160 × 123 mm, the listed gross unit weight is 830 g, and a master carton contains 20 units.
