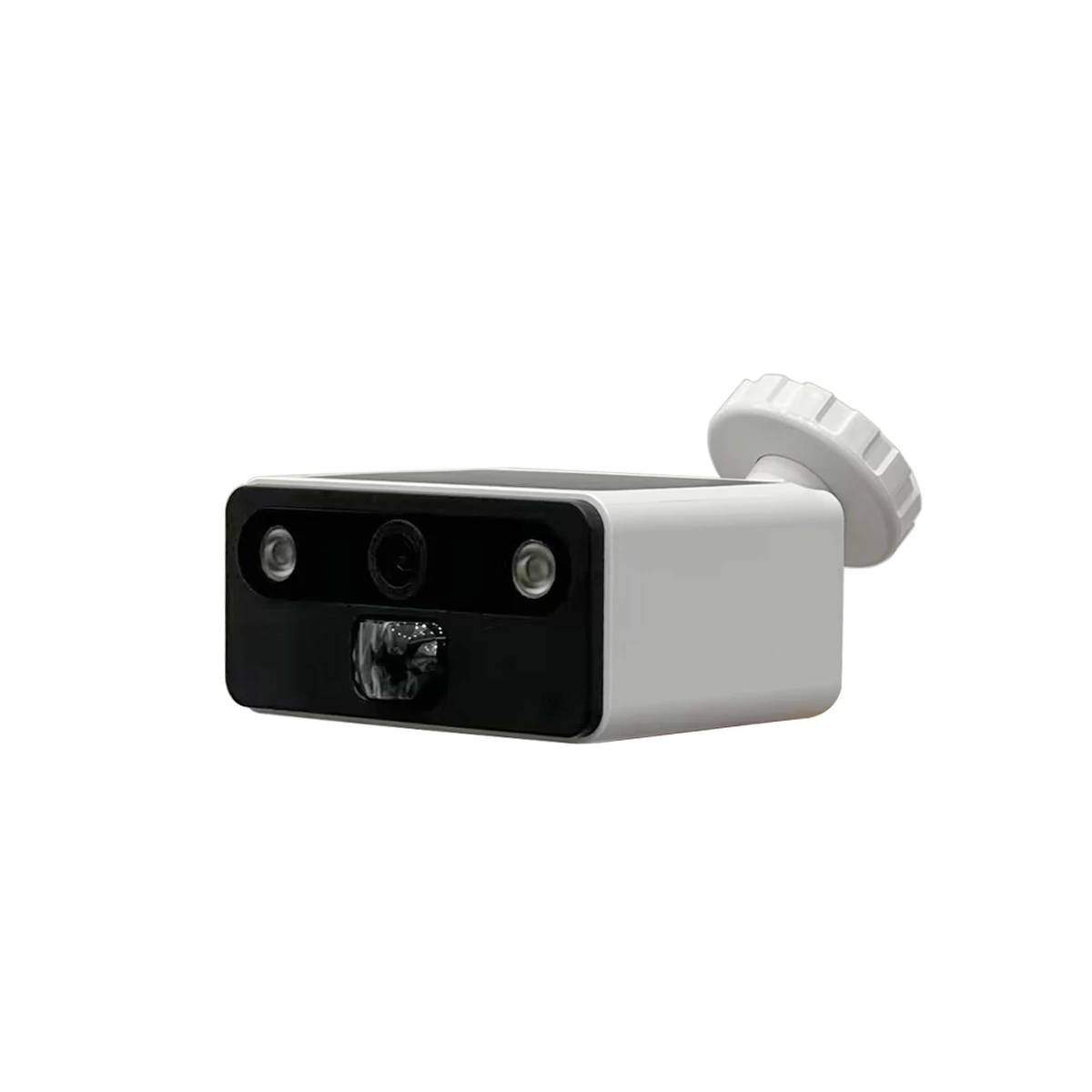

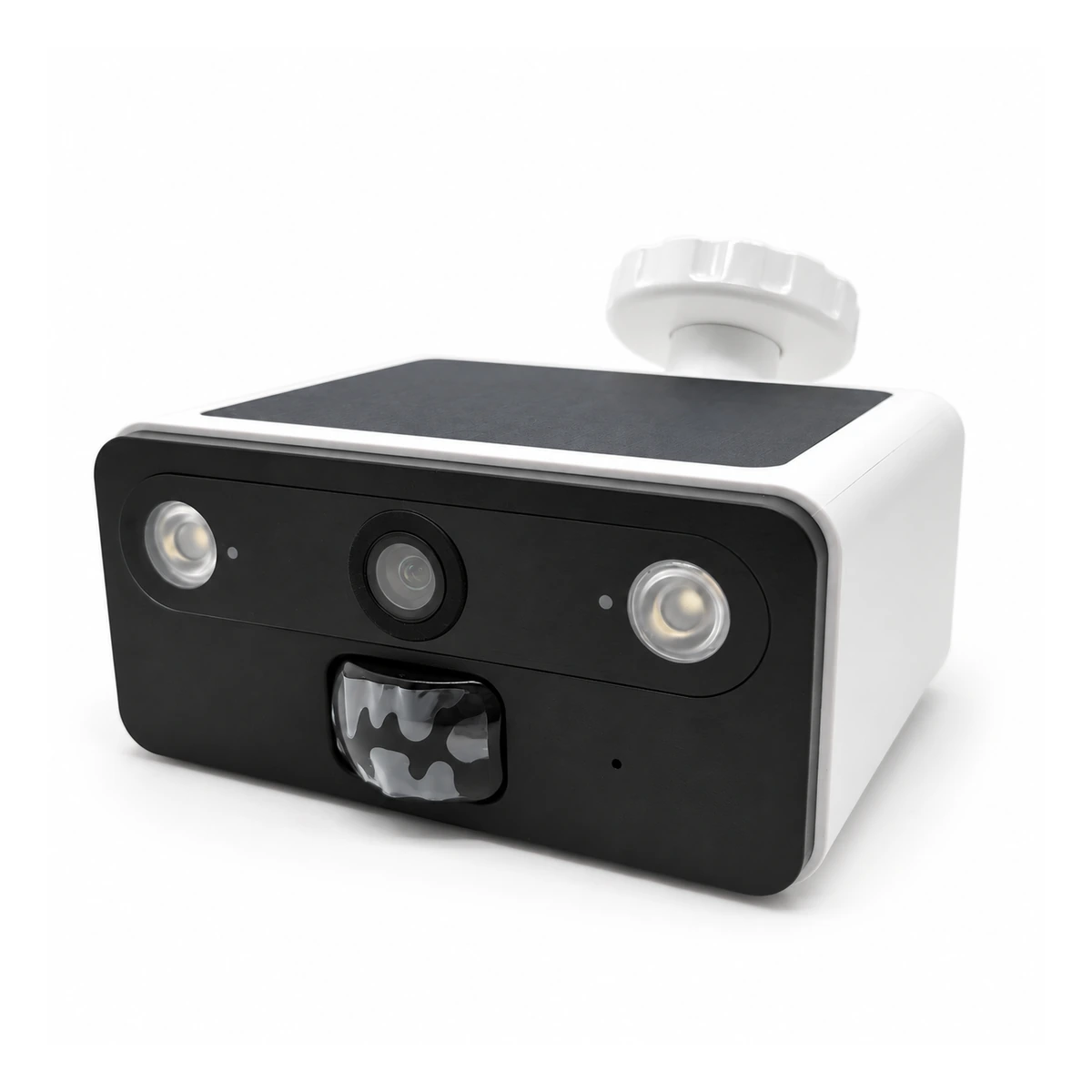

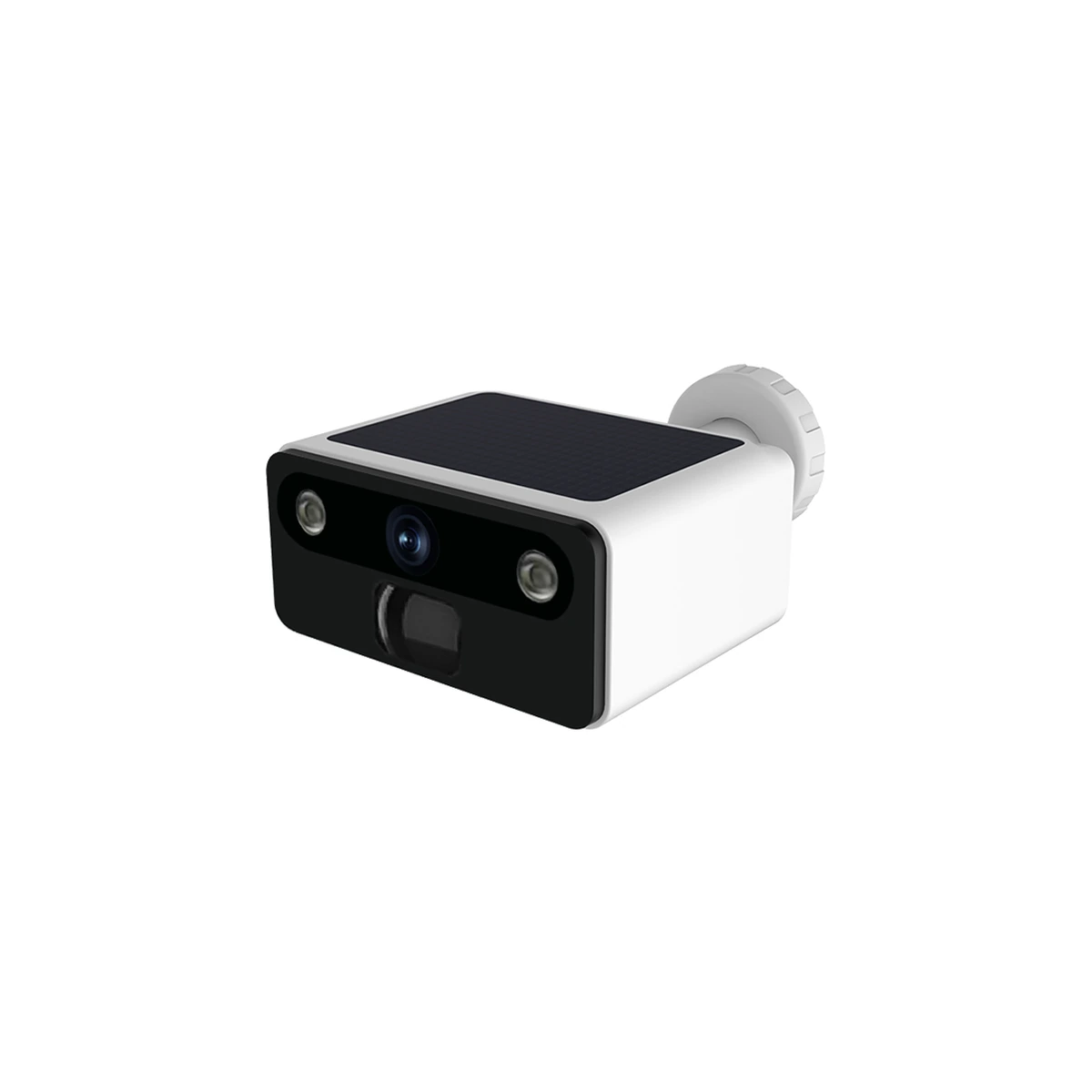

P2A-T 3MP Solar WiFi Security Camera is a low-power outdoor model with a built-in solar panel, PIR wake-up, human detection and two-way audio. The supplied specification lists 2304 × 1296 video at 15 fps, 2.4 GHz WiFi and T-Flash storage up to 128 GB.
| Model | P2A-T |
|---|---|
| Product type | Low-power solar WiFi security camera |
| Image sensor | 3 MP, 1/3-inch sensor |
| Main stream | 2304 × 1296 at 15 fps |
| Lens and view | 2.8 mm lens; 135° diagonal viewing angle |
| Wireless network | 2.4 GHz IEEE 802.11 b/g/n |
| Storage | T-Flash card up to 128 GB; cloud storage listed |
| Solar input | Built-in 1.3 W solar panel |

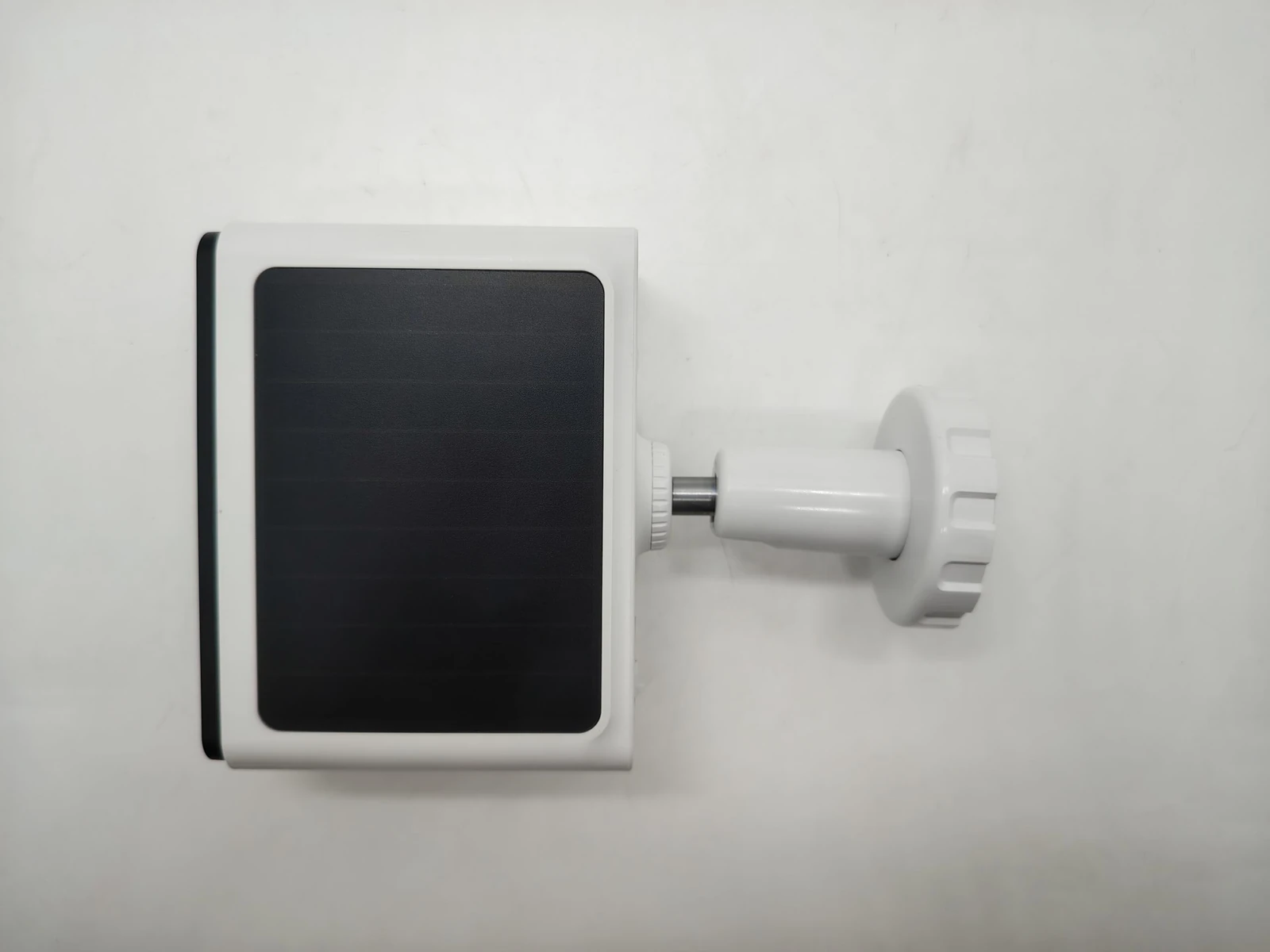

Low-Power Monitoring with Solar Charging
The integrated solar panel supports the rechargeable battery configuration during outdoor use. P2A-T can wake from the mobile app or PIR detection, send a message notification and return to low-power operation. Mounting angle, daily sunlight and event frequency will affect charging and runtime.
- Confirm whether the order uses two 18650 cells or two 21700 cells.
- Choose a mounting position with useful sunlight and stable 2.4 GHz WiFi.
- Test PIR sensitivity, wake-up time and push notifications on an approved sample.
PIR Detection, Night Viewing and Two-Way Audio
P2A-T combines PIR detection with human detection to filter invalid alarm events. The supplied specification lists infrared and full-colour night viewing, a built-in microphone and an 8 Ω 2 W speaker for two-way voice communication.
| Detection | PIR human-body detection with high, medium and low sensitivity |
|---|---|
| Night viewing | Infrared and full-colour day/night modes |
| Audio | Built-in -36 dB microphone and 8 Ω 2 W speaker |
| Encoding | H.264 / MJPEG / JPEG |
| Bitrate control | CBR / VBR, 128 to 1024 kbps |
| Charging voltage | DC 5V ±5% |
| Operating temperature | -10°C to 55°C |
| Operating humidity | Below 90% |

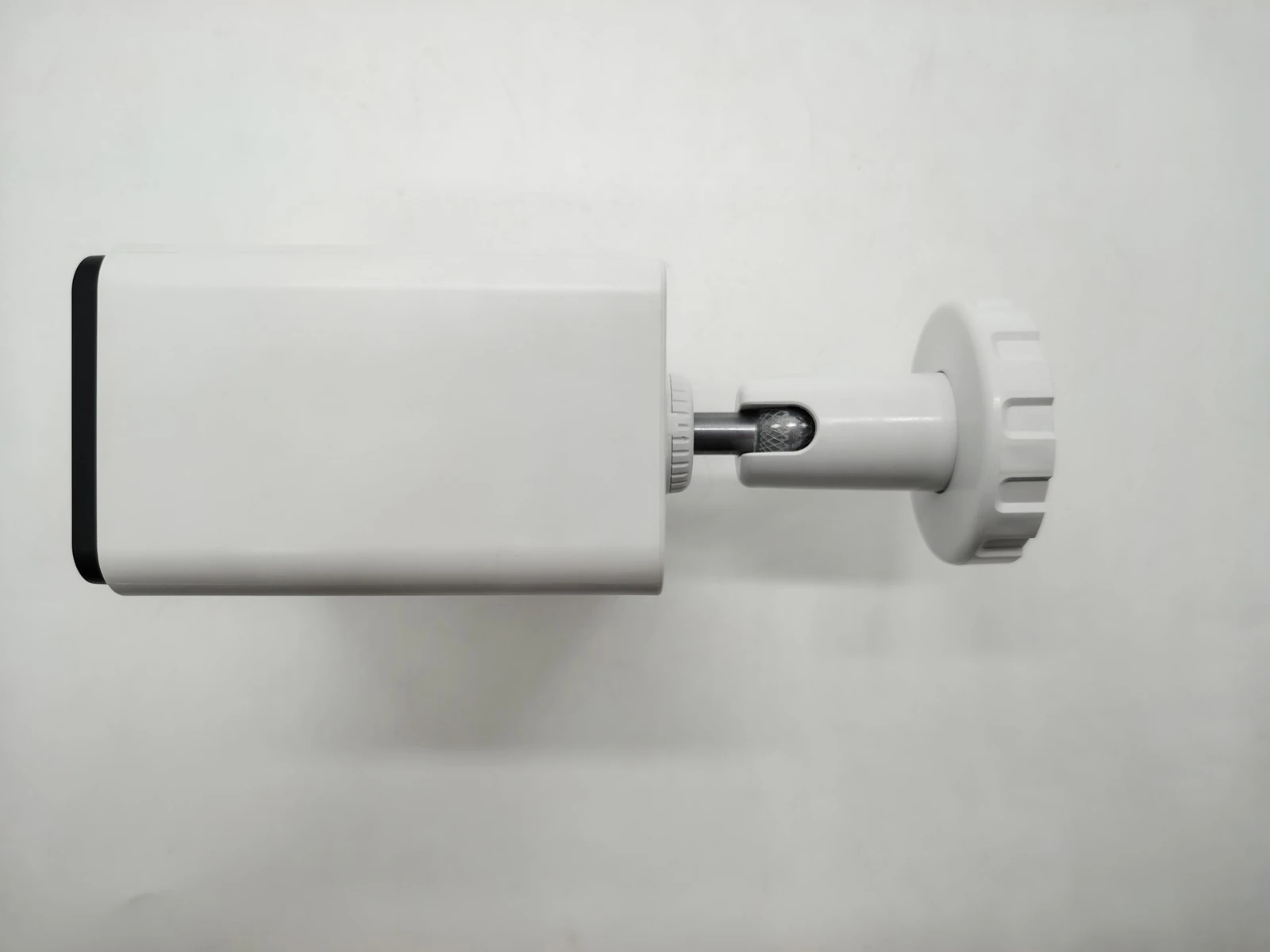

Mounting Hardware and Order Checks

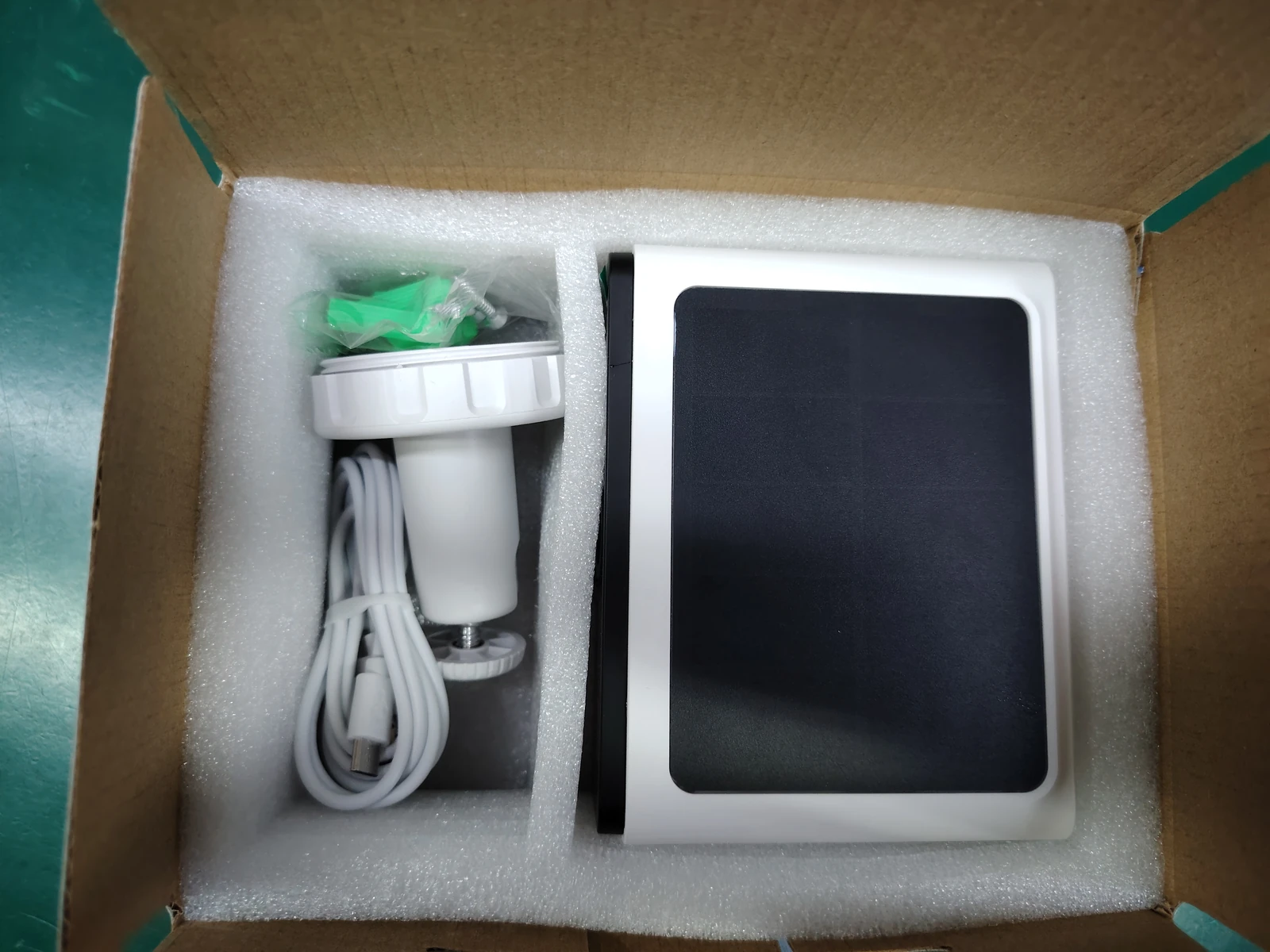

The supplied packing information lists the P2A-T camera, mounting bracket, Type-C cable, instruction manual and screw pack. The camera measures 12.5 × 5.8 × 18 cm and the listed single-unit packed weight is 0.592 kg. Confirm the battery configuration and package contents before production.
| Listed supply | Camera, bracket, Type-C cable, manual and screw pack |
|---|---|
| Single-unit size | 12.5 × 5.8 × 18 cm |
| Listed single-unit weight | 0.592 kg |
| Master carton | 24 units; 62 × 42.5 × 26.5 cm; 19.3 kg |
| Sample test | WiFi onboarding, PIR wake-up, video, audio, night modes, solar charging and storage |
Use Notes
Frequently Asked Questions
What video resolution does P2A-T 3MP Solar WiFi Security Camera support?
P2A-T 3MP Solar WiFi Security Camera uses a 3-megapixel sensor. The supplied specification lists a main stream of 2304 × 1296 at 15 fps and a 360P substream at 15 fps. Final encoding, image quality and stream settings should be checked on the approved sample and current firmware.
Which WiFi network works with P2A-T 3MP Solar WiFi Security Camera?
P2A-T 3MP Solar WiFi Security Camera connects over 2.4 GHz IEEE 802.11 b/g/n WiFi. The supplied specification does not list 5 GHz WiFi support. Buyers should test router compatibility, QR-code onboarding, Bluetooth-assisted setup and app availability with the current firmware before placing a wholesale order.
How is P2A-T 3MP Solar WiFi Security Camera powered?
P2A-T 3MP Solar WiFi Security Camera includes a built-in 1.3 W solar panel and supports up to two 18650 or two 21700 battery cells according to the supplied specification. Battery type, capacity, inclusion, charging behaviour and runtime must be confirmed on the approved sample because those details can vary by order configuration.
Which storage options work with P2A-T 3MP Solar WiFi Security Camera?
P2A-T 3MP Solar WiFi Security Camera supports a T-Flash card up to 128 GB and also lists cloud storage. A storage card is not stated as included. Recording mode, card format, overwrite behaviour, cloud trial terms and regional service availability should be tested with the current app and firmware before resale.
Which detection and night features does P2A-T 3MP Solar WiFi Security Camera include?
P2A-T 3MP Solar WiFi Security Camera supports PIR wake-up, human detection, infrared night vision, full-colour night viewing, message push and two-way voice communication. Sensitivity, detection range, lamp behaviour, alert delay and night image quality should be verified on the approved sample in the intended mounting position.
