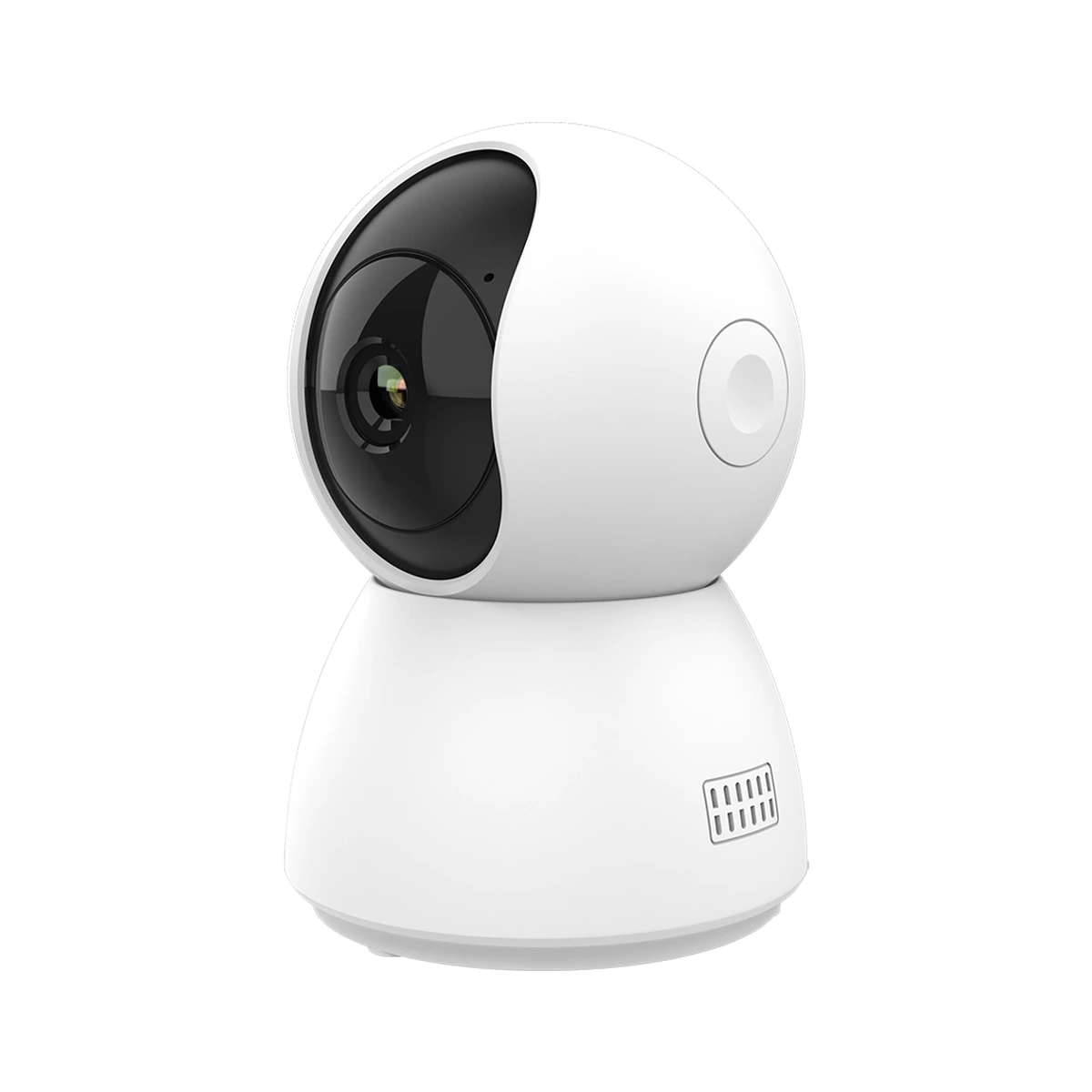

ZX-C23B-I Smart Home Alarm Camera Kit combines an indoor pan-tilt camera with app arming controls and support for up to 32 compatible alarm accessories. The listed kit includes a PIR sensor, door sensor and two remotes, with 2MP or 4MP camera options.
| Model | ZX-C23B-I |
|---|---|
| Resolution options | 2MP or 4MP |
| Accessory capacity | Up to 32 compatible sub-devices |
| Network | 2.4GHz WiFi; Bluetooth-assisted setup |
| Storage | MicroSD card up to 256GB |
| Power | 5V DC |
| Audio | Two-way audio |
| Privacy | Physical privacy shutter supported |
Camera and Alarm Accessories in One App
The camera can manage compatible PIR, door, remote, smoke, water-leak and gas accessories. App controls support arming, disarming and accessory management. The standard kit supplies the camera, one PIR sensor, one door sensor and two remote controls.
- Choose the 2MP or 4MP camera configuration before quoting.
- Confirm every accessory type and quantity on the purchase order.
- Test pairing, arming, alerts, video, audio and the privacy shutter.
Monitoring, Alerts and Physical Privacy

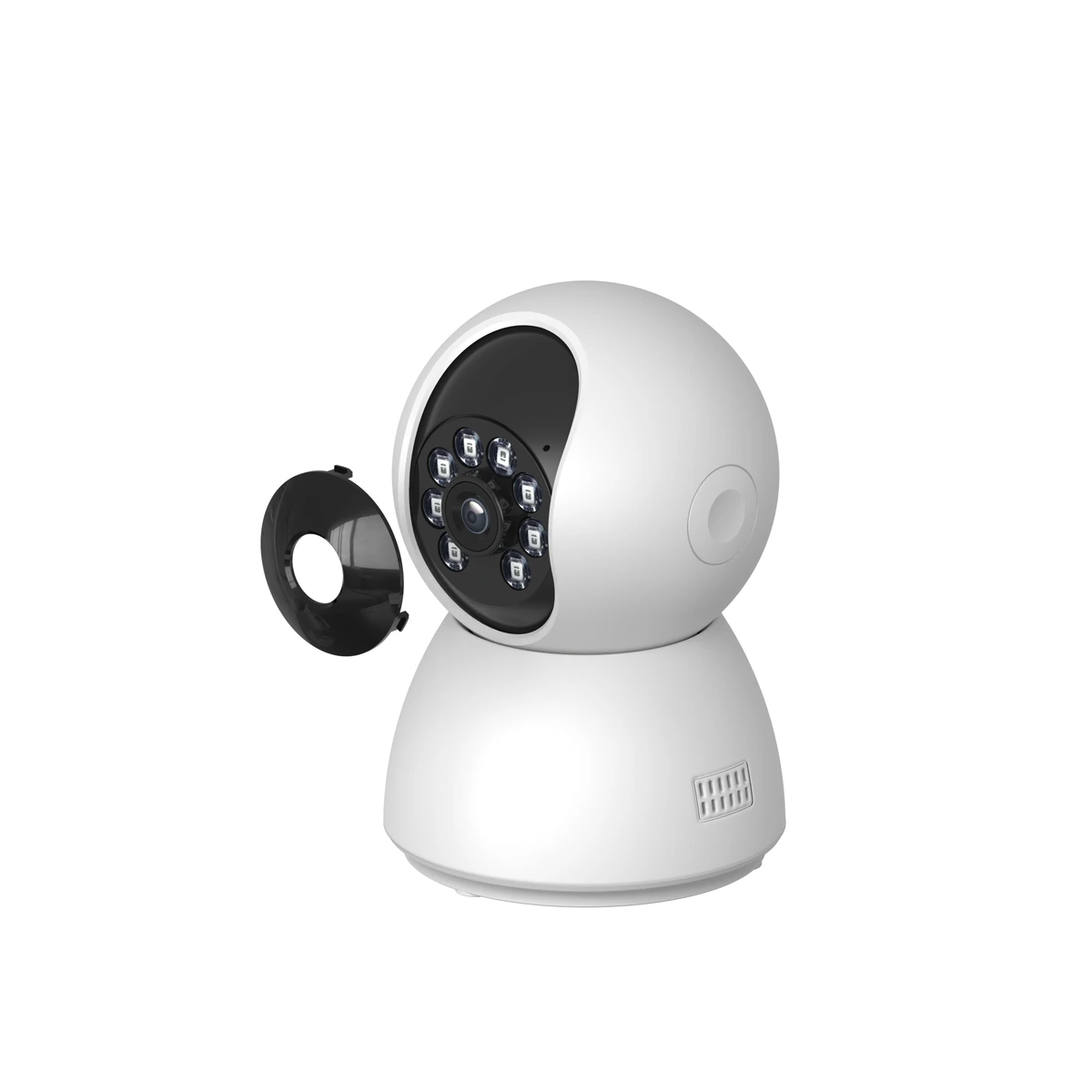

ZX-C23B-I lists two-way audio, infrared night vision, human, motion and sound detection, and mobile alarm notifications. A physical privacy shutter can block the camera view when monitoring is not required. Local storage supports a microSD card up to 256GB.
| Accessory management | Up to 32 compatible devices |
|---|---|
| App controls | Arm, disarm and manage accessories |
| Detection | Human, motion and sound detection |
| Audio | Two-way audio |
| Night viewing | Infrared mode |
| Storage | MicroSD up to 256GB |
| Network | 2.4GHz WiFi |
| Privacy | Physical shutter supported |
Standard Alarm Kit Configuration

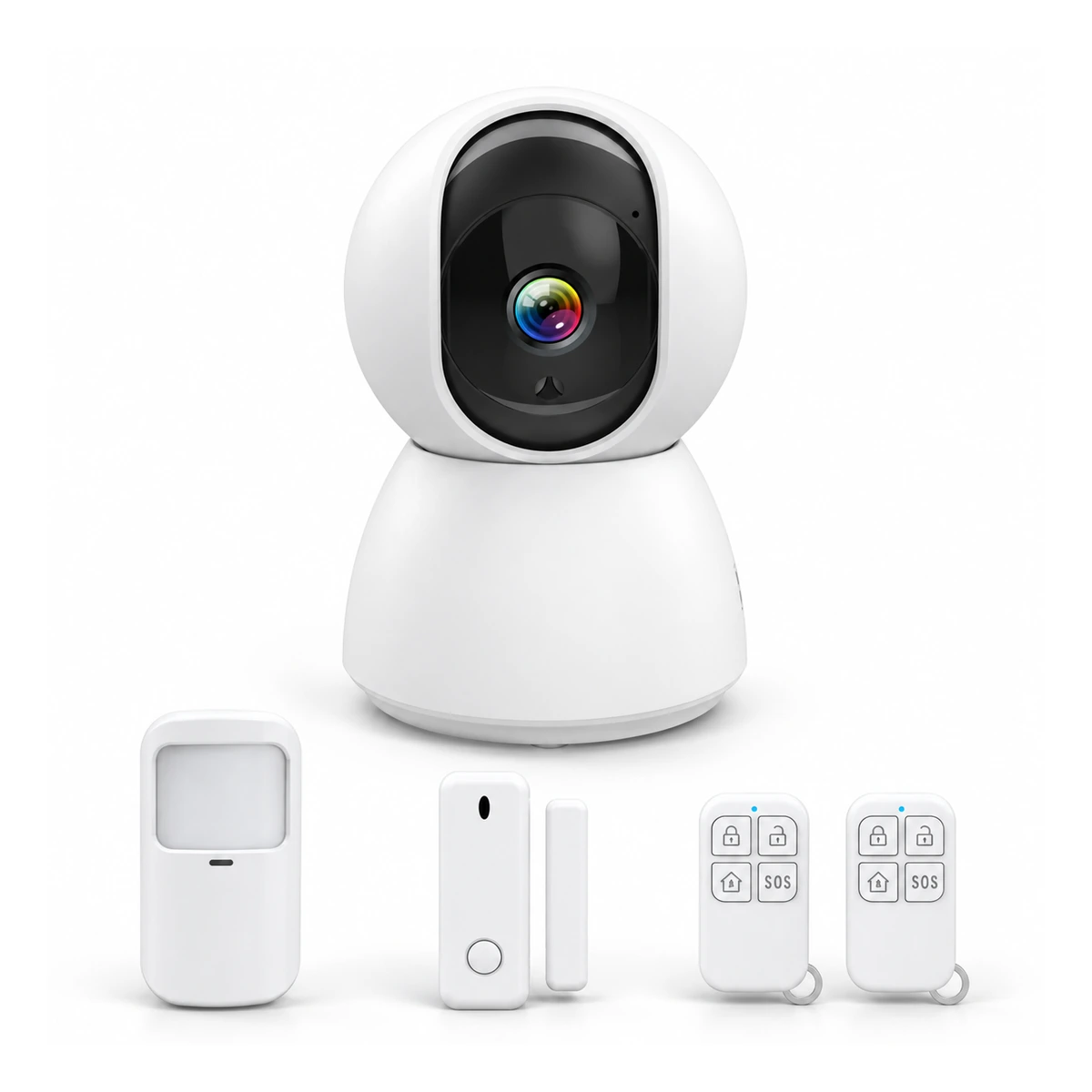

The listed standard set contains one camera, one PIR sensor, one door sensor, two remote controls, one instruction manual and a power supply. The color box measures 230.5 × 142 × 86 mm. The listed gross unit weight is 640 g, with 20 sets per carton.
| Resolution | 2MP base price; 4MP option available |
|---|---|
| Standard set | Camera, PIR sensor, door sensor, two remotes, manual and power supply |
| Color box | 230.5 × 142 × 86 mm |
| Listed unit gross weight | 640 g |
| Master carton | 20 sets; 479 × 454 × 314 mm |
| Sample check | Accessory pairing, arming, alerts, video, audio and privacy shutter |
Use Notes
Frequently Asked Questions
How many accessories can the ZX-C23B-I Smart Home Alarm Camera Kit manage?
ZX-C23B-I Smart Home Alarm Camera Kit supports up to 32 compatible sub-devices according to the supplied sheet. Listed accessory types include PIR, door, remote, smoke, water-leak and gas devices. Confirm protocol compatibility and test every required accessory on the approved sample before ordering a mixed kit.
Which camera resolutions are available for the ZX-C23B-I Smart Home Alarm Camera Kit?
ZX-C23B-I Smart Home Alarm Camera Kit is offered with listed 2MP and 4MP camera configurations. The displayed wholesale tiers use the 2MP base cost. Request a separate quotation for the 4MP version, then approve the selected camera and accessory set before production.
What privacy feature does the ZX-C23B-I Smart Home Alarm Camera Kit include?
ZX-C23B-I Smart Home Alarm Camera Kit supports a physical privacy shutter that can block the camera view when monitoring is not required. App controls also support arming and disarming. Test shutter operation, app permissions, notifications and all selected sensors with the current firmware before resale.
What is included with the ZX-C23B-I Smart Home Alarm Camera Kit?
ZX-C23B-I Smart Home Alarm Camera Kit is listed with one camera, one PIR sensor, one door sensor, two remotes, one manual and a power supply. The color box measures 230.5 × 142 × 86 mm, the listed gross unit weight is 640 g, and a carton contains 20 sets.
