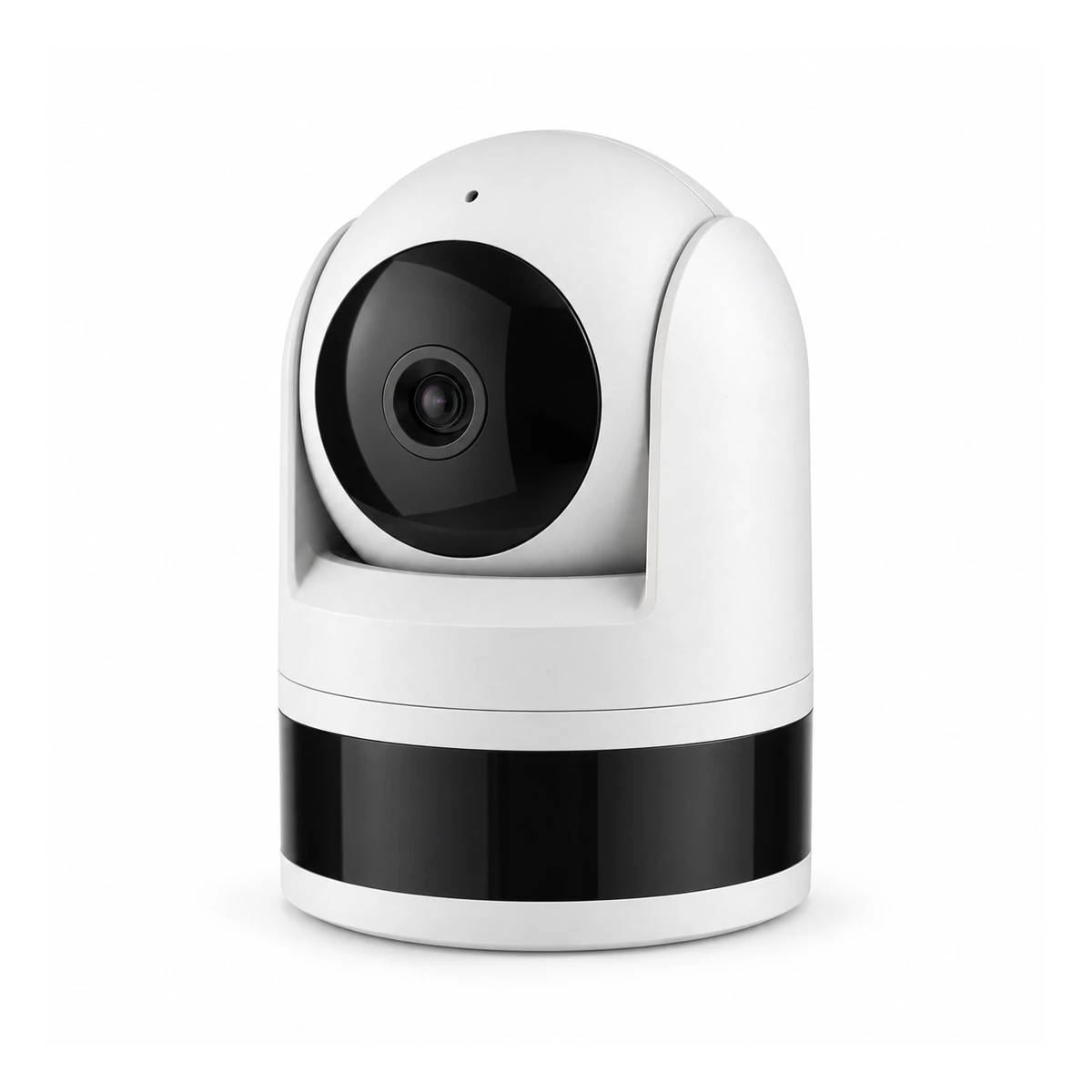

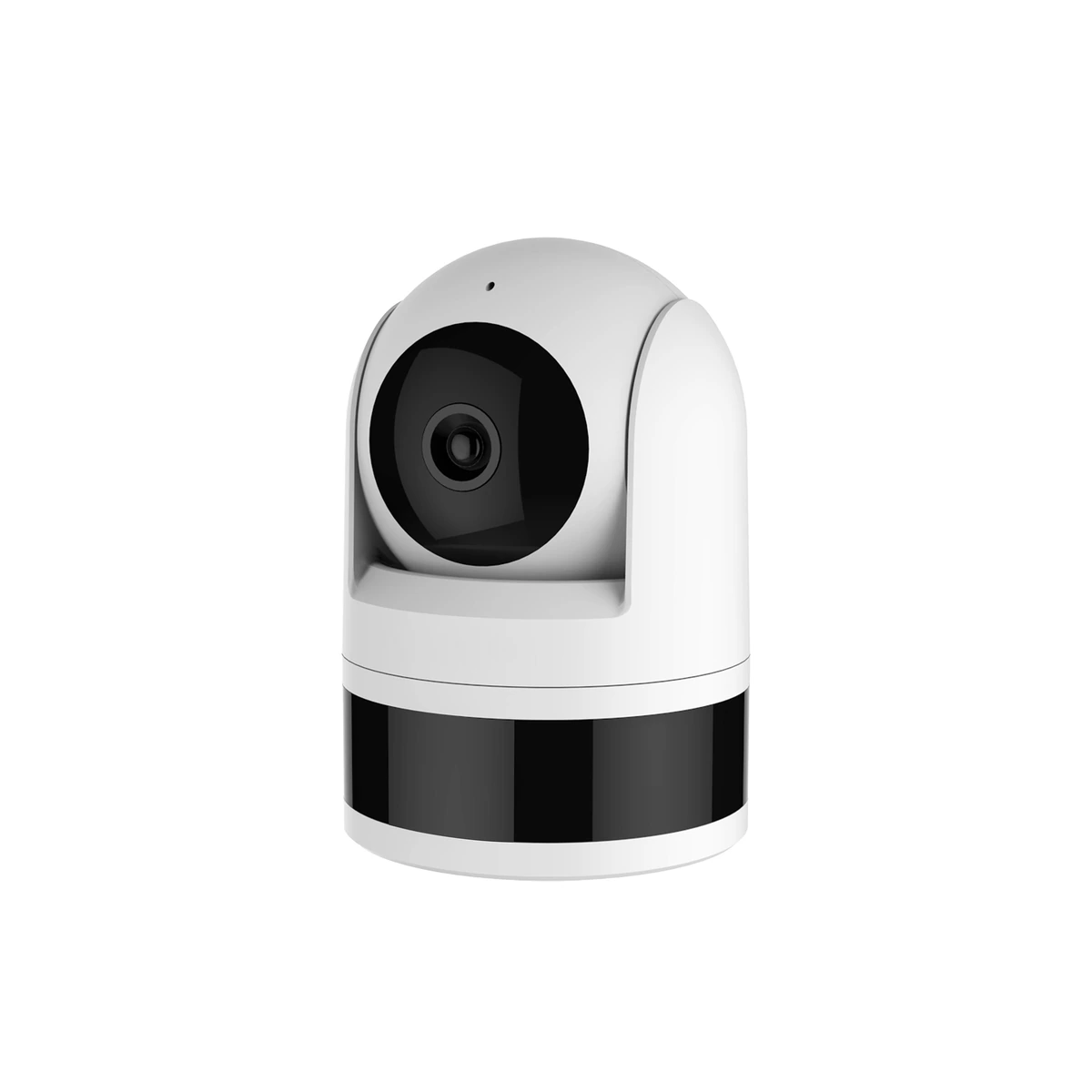

C20 Indoor Pan-Tilt WiFi Camera is available in 2MP and 4MP configurations for rooms that need remote viewing beyond a fixed angle. It supports two-way audio, infrared night vision, human, motion and sound detection, mobile alerts, local storage and ONVIF integration.
| Model | C20 |
|---|---|
| Resolution options | 2MP or 4MP |
| Network | 2.4GHz / 5GHz WiFi; Bluetooth-assisted setup |
| Video encoding | H.264 |
| Storage | MicroSD card up to 256GB |
| Power | 5V DC |
| Compatibility | ONVIF listed |
| Detection | Human, motion and sound detection |

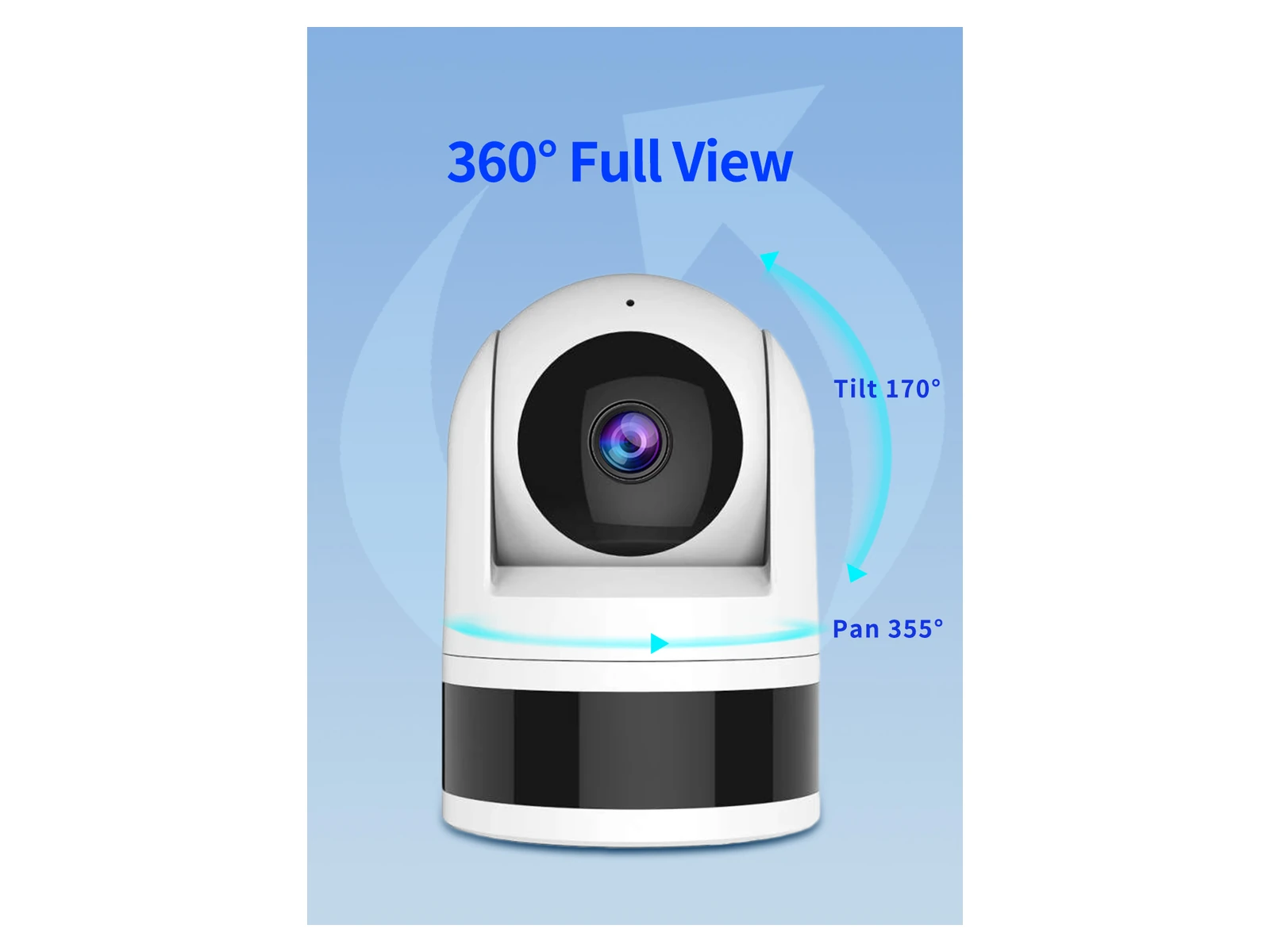

Pan-Tilt Viewing for Indoor Areas
The rotating head can cover more of a room than a fixed camera. C20 fits counters, family rooms, small offices and care settings where the operator needs remote viewing, two-way audio and alert notifications. Select 2MP or 4MP before sample approval.
- Choose the 2MP or 4MP configuration before quoting.
- Test pan, tilt, audio and alert behavior with the current app.
- Check ONVIF support with the intended recorder or software.
Night Viewing and Multi-Event Alerts
The supplied product sheet lists infrared night vision, human detection, motion detection and sound detection. Alarm events can be pushed to the mobile phone. Local recordings can be stored on a microSD card up to 256GB, subject to the selected card and recording settings.
| Detection | Human, motion and sound detection |
|---|---|
| Alerts | Mobile alarm notifications |
| Audio | Two-way audio |
| Night viewing | Infrared mode |
| Storage | MicroSD up to 256GB |
| Network | 2.4GHz / 5GHz WiFi |
| Setup | Bluetooth-assisted pairing |
| Protocol | ONVIF listed |
Configuration and Carton Data
The standard C20 set contains one camera, one instruction manual and a power supply. The color box measures 87 × 92 × 148 mm. The packing sheet lists 50 units per carton and a gross unit weight of 250 g. Higher-resolution pricing is quoted separately.
| Resolution | 2MP base price; 4MP option available |
|---|---|
| Standard set | Camera, manual and power supply |
| Color box | 87 × 92 × 148 mm |
| Listed unit gross weight | 250 g |
| Master carton | 50 units; 482 × 388 × 350 mm |
| Sample check | Pan, tilt, audio, night view, alerts, storage and ONVIF |
Use Notes
Frequently Asked Questions
Which resolutions are available for the C20 Indoor Pan-Tilt WiFi Camera?
C20 Indoor Pan-Tilt WiFi Camera is listed in 2MP and 4MP configurations. Both versions use H.264 encoding and support infrared night viewing. The displayed wholesale tiers use the 2MP base cost; request a separate quotation for the 4MP version and approve the selected sample before production.
Which WiFi networks work with the C20 Indoor Pan-Tilt WiFi Camera?
C20 Indoor Pan-Tilt WiFi Camera is listed for 2.4GHz and 5GHz WiFi and supports Bluetooth-assisted setup. ONVIF is also listed. Test router onboarding, signal stability and the intended ONVIF recorder or software on the approved sample because regional firmware and integrations can vary.
What detection functions does the C20 Indoor Pan-Tilt WiFi Camera include?
C20 Indoor Pan-Tilt WiFi Camera supports human detection, motion detection and sound detection according to the supplied product sheet. Alarm notifications can be pushed to a mobile phone. Sensitivity, tracking behavior, alert delay and false-alarm performance should be tested in the intended room before a wholesale order.
What is the packing information for the C20 Indoor Pan-Tilt WiFi Camera?
C20 Indoor Pan-Tilt WiFi Camera is packed with one camera, one instruction manual and a power supply. The color box measures 87 × 92 × 148 mm, the listed gross unit weight is 250 g, and a master carton contains 50 units. Confirm resolution and plug type before production.
