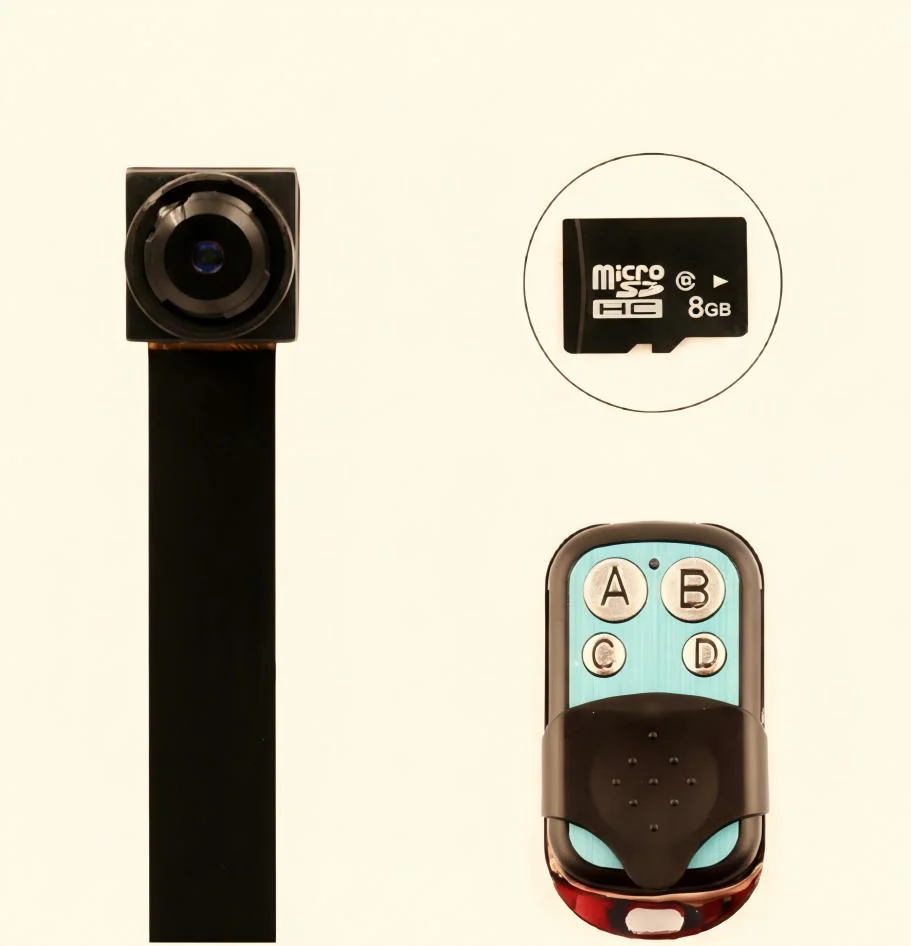

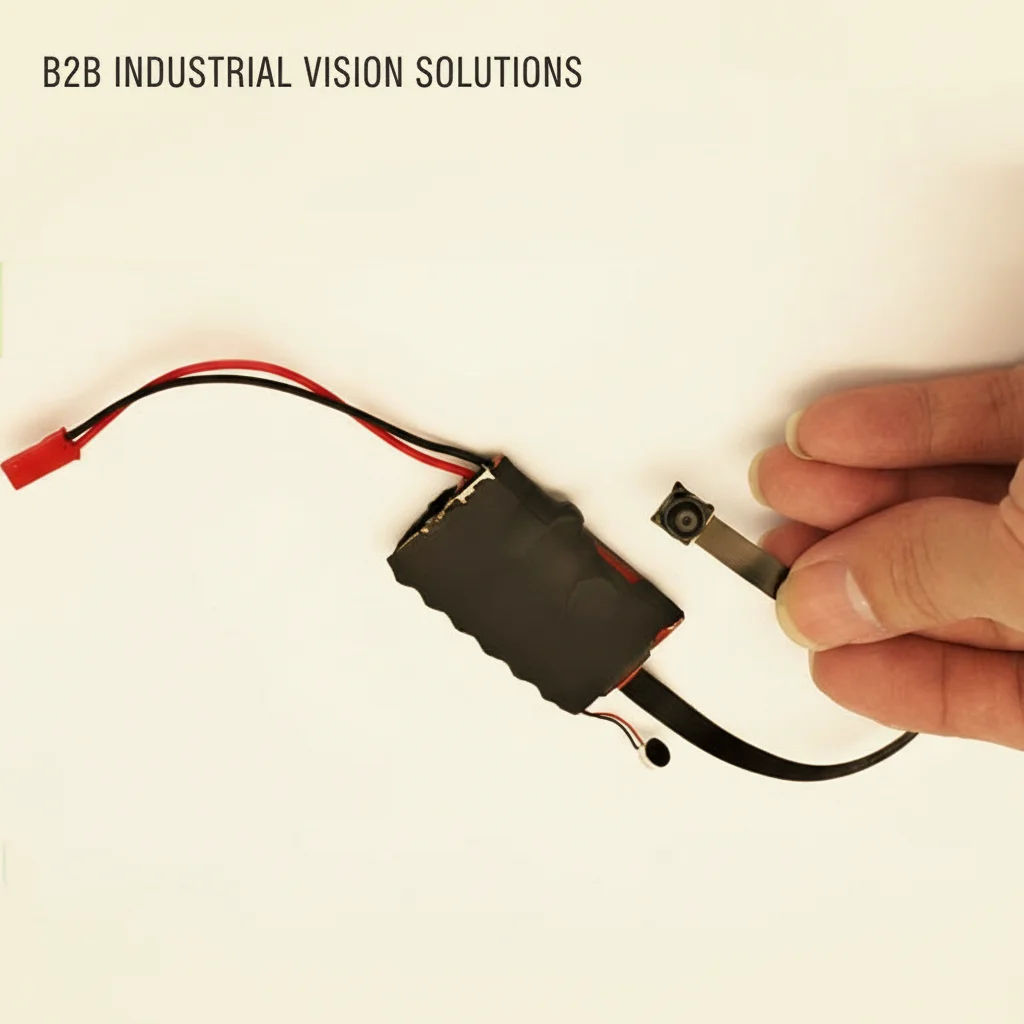

QZT S80 DIY Camera Module is a 1080P standalone DVR module for custom indoor builds that need local MicroSD recording, 2.4GHz wireless remote control, motion recording, audio/video capture, and long battery use. The 2000mAh battery supports up to 12 hours of continuous recording.
| Feature | S80 configuration | Order note |
|---|---|---|
| Video | 1080P AVI recording | Use S80 when the project needs local files rather than WiFi app viewing. |
| Power | 2000mAh battery, up to 12 hours | USB power can be used when the build needs longer recording. |
| Control | 2.4GHz wireless remote control | Useful when the module is hidden inside a custom shell. |

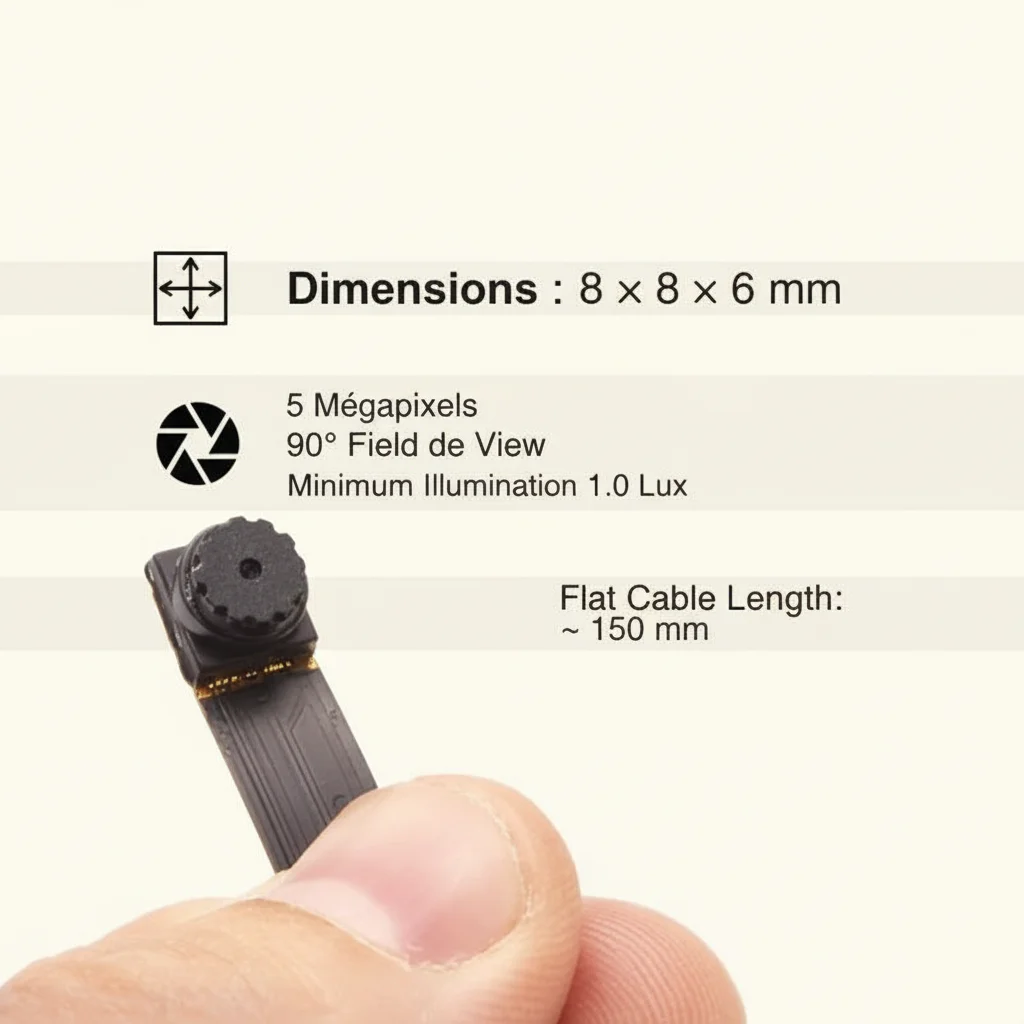

| Lens | 90 degree lens, separated module layout | Check cable route, button access, and board space before production. |
| Storage | MicroSD up to 128GB | Local recording needs a MicroSD card. Tell QZT if cards should be supplied with the order. |
Watch the S80 module video to check the board layout, lens cable, remote control, and sample operation before custom assembly.
Where to Use the S80 DIY Module
The S80 is for custom builds that need a small separate lens and a self-contained recording board. It is suitable for prototype housings, wearable samples, display objects, cabinets, and OEM projects where WiFi app setup is not required.
- Custom housing: place the lens where the shell can accept a small opening and keep the board inside the enclosure.
- Remote operation: the 2.4GHz remote can start or stop recording without touching the hidden module.
- Sample build: check lens cable length, battery space, MicroSD access, charging access, and heat clearance.
Recording, Remote Control, and Power
The S80 works as a standalone recorder. Insert a MicroSD card, charge the 2000mAh battery, use the wireless remote, and review AVI files from the card. The existing QZT specification keeps the main selling points clear: 1080P, 12-hour battery, motion recording, audio/video, and recording while charging.
| Function | Specification | What to check |
|---|---|---|
| Recording | 1080P AVI video with audio | Check file playback and card formatting during the first sample test. |
| Battery | 2000mAh, up to 12 hours | Confirm the runtime needed for the final housing or project. |

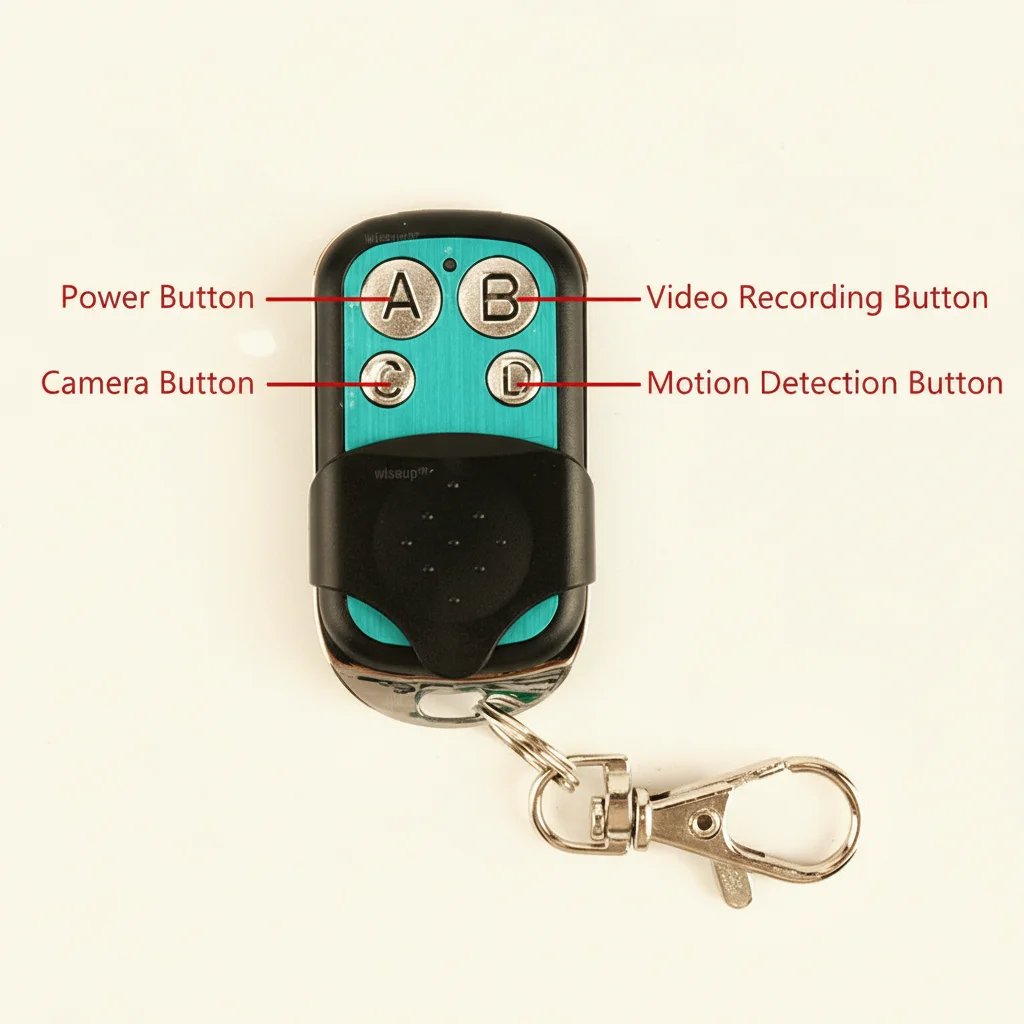

| Remote | 2.4GHz RF remote, about 5-6m from the old QZT specification | Test remote response after the module is placed inside the planned shell. |
| Motion recording | Motion detection mode available | Use motion mode when the project does not need continuous files. |

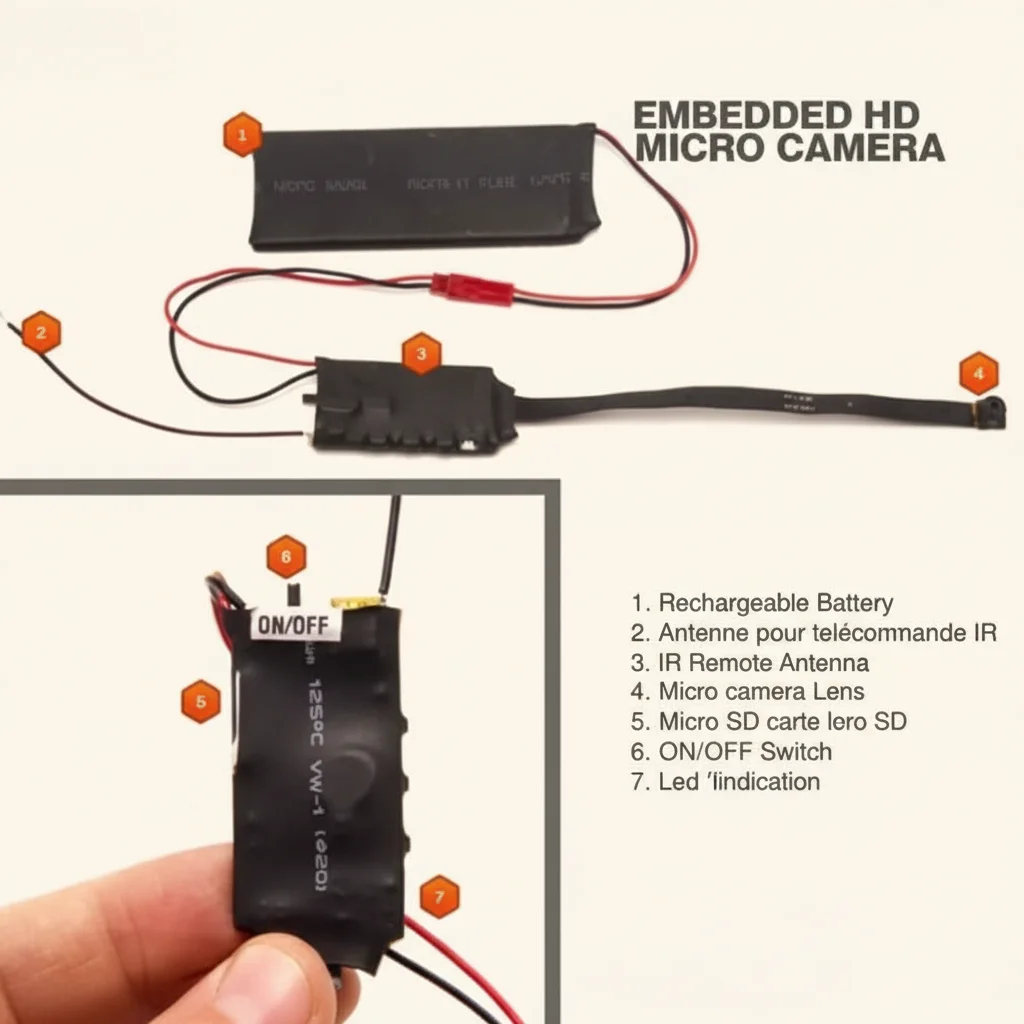

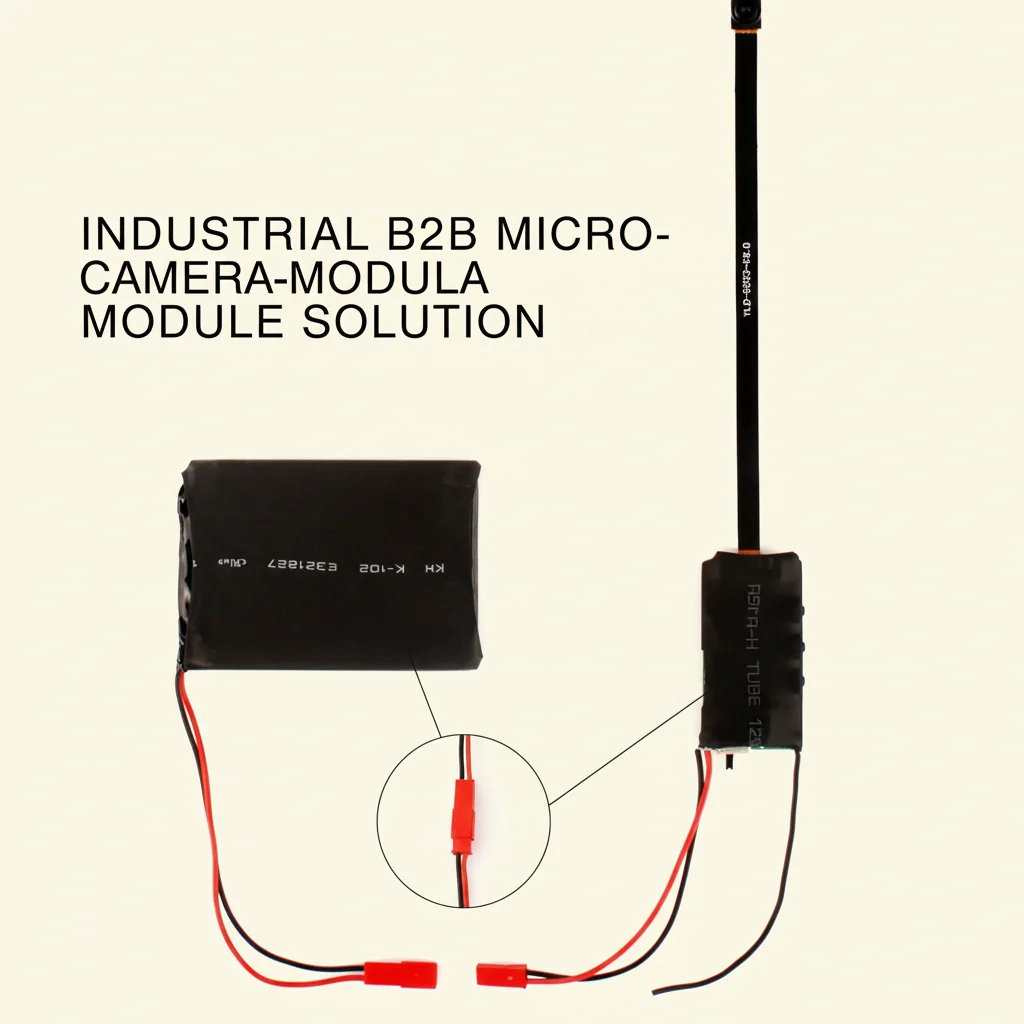

| Integration | Separated lens and main board | Leave space for lens cable bending, buttons, USB charging, and MicroSD access. |

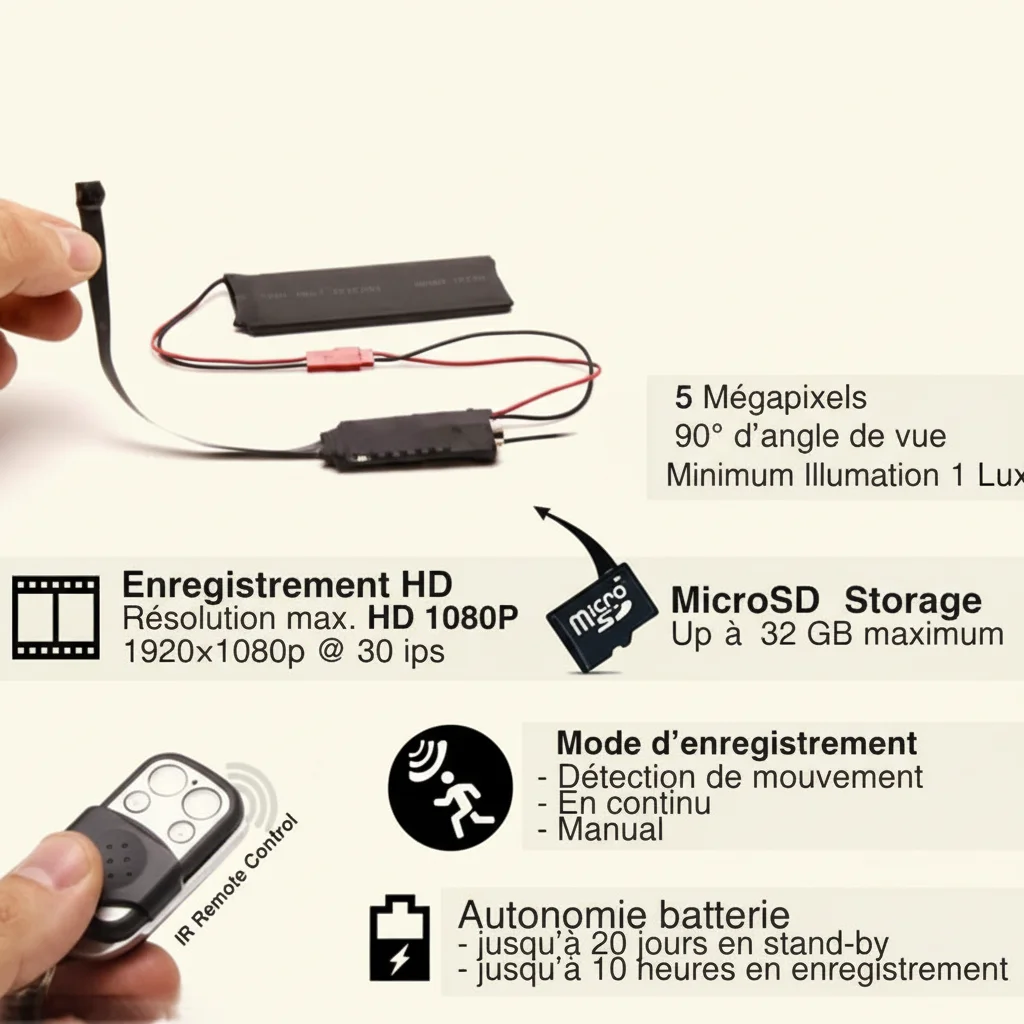

Technical Specifications
| Model | S80 |
|---|---|
| Product type | Standalone DIY camera module |
| Resolution | 1080P |
| Video format | AVI |

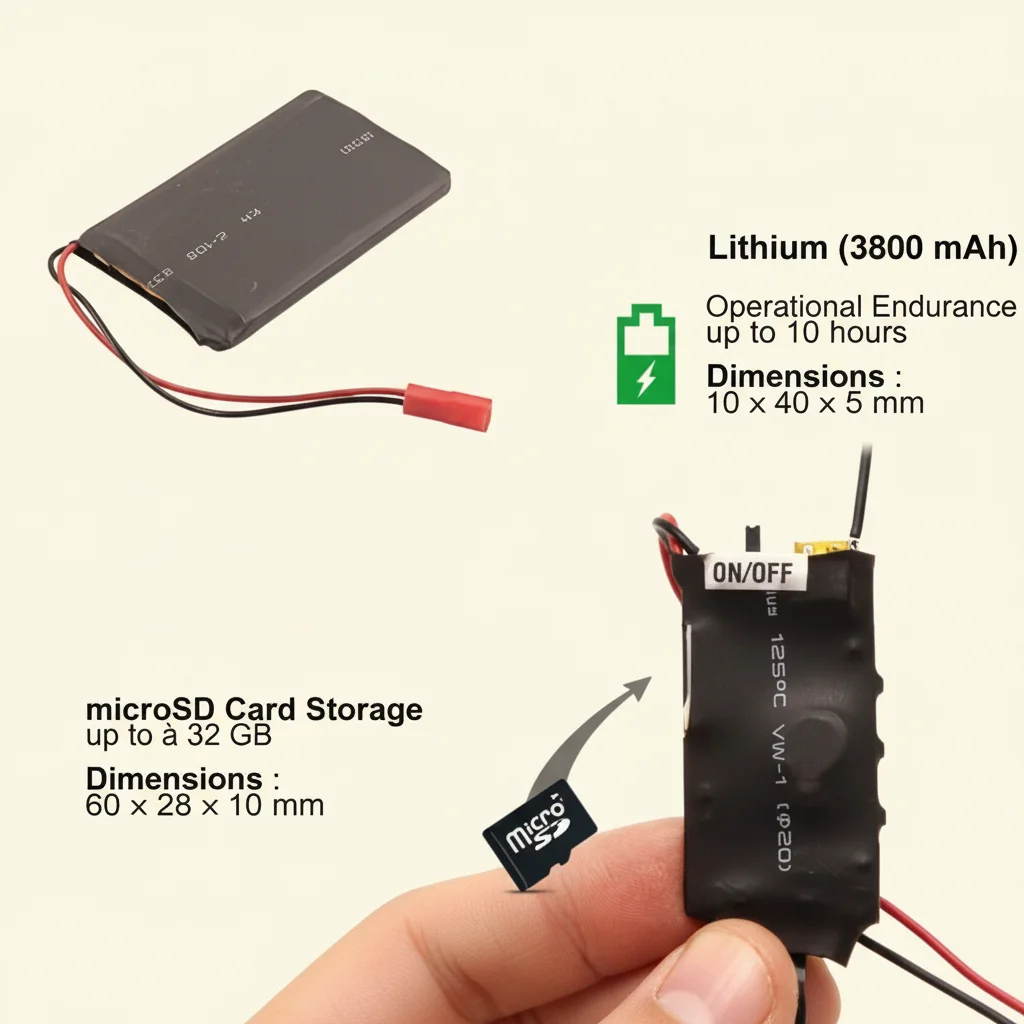

| Battery | 2000mAh, up to 12 hours |
| Lens angle | 90 degrees |
| Storage | MicroSD up to 128GB |
| Control | 2.4GHz wireless remote control |
| Recording functions | Motion detection, audio/video recording, recording while charging |
| Power input | DC 5V USB |
| Warranty | 12-month warranty support |
| MOQ | 50 pieces |
S80 Compared with WiFi DIY Modules
| Option | Best for | Trade-off |
|---|---|---|
| S80 standalone DVR module | Custom builds that need long battery recording, remote control, and MicroSD files. | No phone app live view; files are reviewed from the card. |
| Tuya WiFi DIY module | Projects that need Tuya app viewing, phone alerts, and 2.4GHz WiFi setup. | Requires app pairing, router testing, and more setup support. |
| Finished hidden camera | Orders that need a ready-made clock, charger, tissue box, or smoke detector shell. | Less freedom for custom housing and lens placement. |
What Comes in the Box

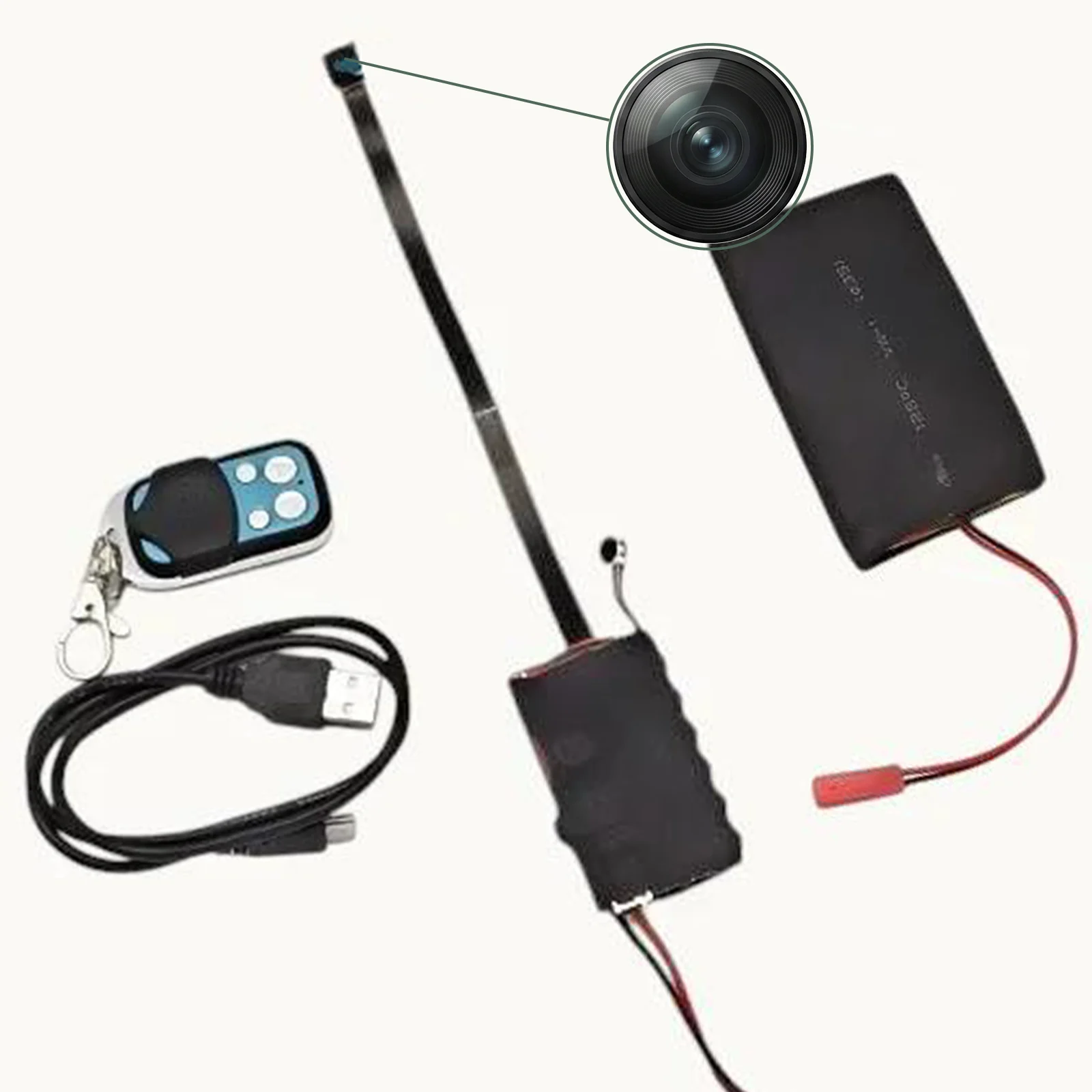

The sample set can include the S80 module, lens cable, battery, wireless remote, USB cable, manual, and agreed accessories. Before repeat orders, confirm cable length, battery position, package style, manual language, and whether memory cards should be supplied.
Ordering from QZT
QZT supports sample testing, module configuration checks, wholesale pricing, OEM packaging, CE/RoHS document discussion for eligible orders, and 12-month warranty support. European customers can request invoice details, VAT information, Italy stock status, and technical help for remote control, charging, and file playback.
Frequently Asked Questions
Does QZT S80 DIY Camera Module need WiFi?
QZT S80 DIY Camera Module does not need WiFi for normal recording. QZT S80 DIY Camera Module records locally to a MicroSD card, uses 2.4GHz wireless remote control, and is suitable for custom builds that do not require phone app live view.
How long can QZT S80 DIY Camera Module record?
QZT S80 DIY Camera Module uses a 2000mAh battery and supports up to 12 hours of continuous recording. QZT S80 DIY Camera Module can also record while charging when the custom build allows USB power access.
What storage does QZT S80 DIY Camera Module support?
QZT S80 DIY Camera Module supports MicroSD storage up to 128GB. QZT S80 DIY Camera Module sample testing should include card formatting, AVI playback, motion recording, remote control response, and battery runtime before repeat orders.
What should be checked before ordering QZT S80 DIY Camera Module?
QZT S80 DIY Camera Module orders should check lens cable route, board space, battery placement, USB charging access, MicroSD access, remote control distance, and heat clearance. QZT can discuss OEM packaging and CE/RoHS document support for eligible orders.
