How to Install a Smoke Detector Hidden Camera at Home

A smoke detector hidden camera is the gold standard of ceiling-mounted covert surveillance. It mounts exactly where a real smoke detector belongs—directly on the ceiling—and provides a natural, overhead view of an entire room. No visitor, no babysitter, no contractor would think twice about a smoke detector on the ceiling. Yet inside is a Full HD WiFi camera with night vision, motion detection, and remote smartphone monitoring.

This guide covers how to choose, install, and get the most from a smoke detector hidden camera.

Why a Smoke Detector Camera Is So Effective

The smoke detector form factor has several unique advantages over other hidden camera types:

Ceiling-mounted perspective: Looking down from the ceiling provides the widest possible coverage of a room. A single camera positioned in the center of a ceiling can cover an entire living room, bedroom, or office.

Universal acceptance: Smoke detectors are legally required in most jurisdictions. Anyone entering your home expects to see them on the ceiling—and never questions them.

Unobstructed view: Ceiling-mounted cameras are harder to accidentally block with furniture, bags, or people moving around the room.

Permanent installation option: Unlike portable spy cameras that need repositioning, a ceiling-mounted device stays fixed in the optimal position indefinitely.

AC power option: Some models plug into a ceiling junction box, providing unlimited power and eliminating battery concerns entirely.

Key Features to Look For

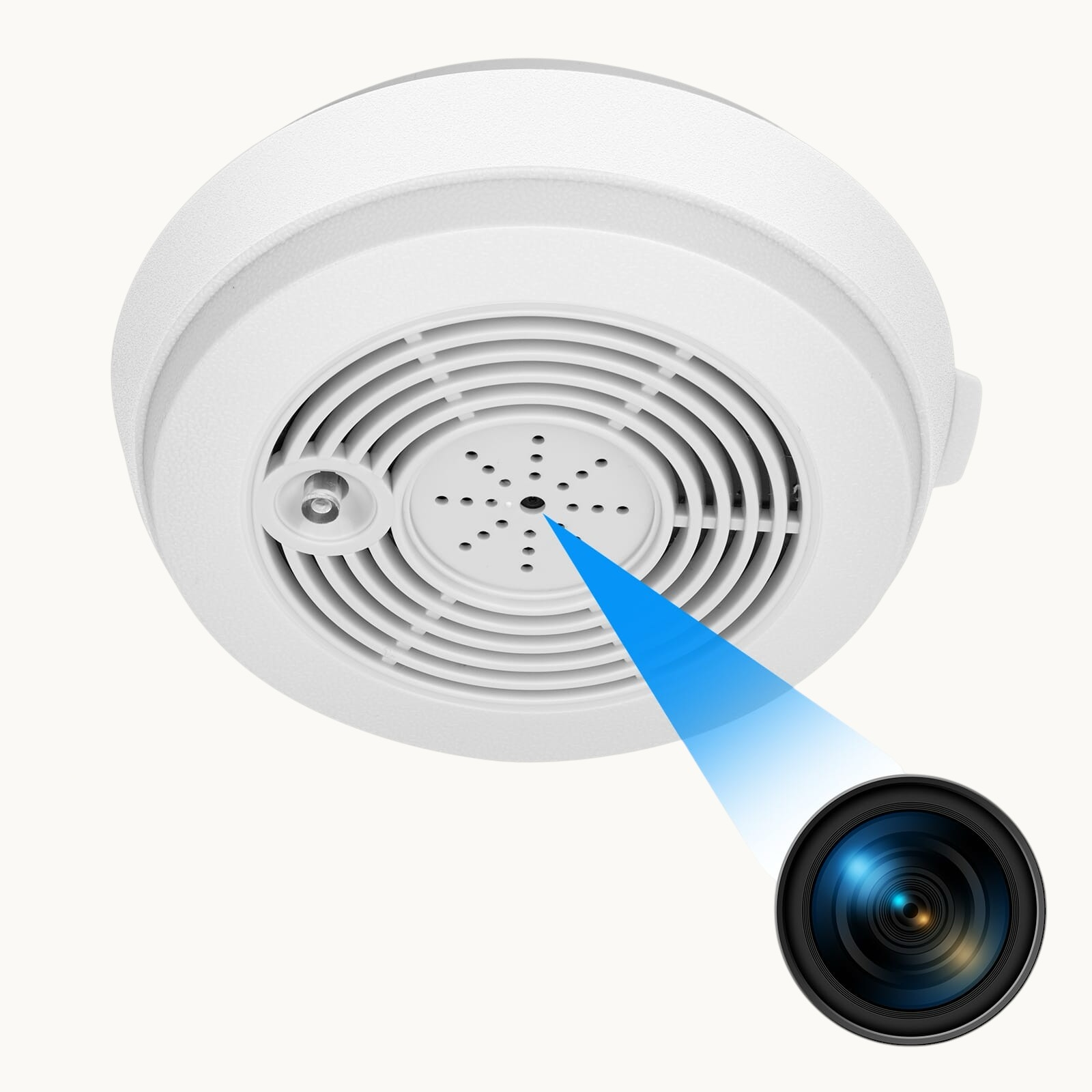

Video Resolution and Fisheye Lens

Ceiling-mounted cameras require wide-angle or fisheye lenses to be effective. Look for:

– 1080p Full HD minimum: Provides adequate detail for face recognition even from ceiling height

– Wide-angle lens (120–180 degrees): Essential for ceiling mounting. A 160–180 degree fisheye can cover an entire room from a center-ceiling position

– 4K option: If available, provides significantly better detail at ceiling distances

The tradeoff with ultra-wide lenses is barrel distortion at the edges of the frame—straight lines appear curved. Some cameras include de-warping software in their apps to correct this distortion.

Night Vision

Night vision is critical for home security cameras that monitor bedrooms and living areas at night. Smoke detector cameras typically use:

IR LEDs (850nm or 940nm): Provide effective night vision to 15–30 feet from ceiling height. 850nm produces faint red glow; 940nm is completely invisible.

Starlight sensor: Some premium models use large-aperture lenses with highly sensitive sensors to produce color video in low light without IR.

For most home security applications, 940nm IR provides the best balance of performance and true covert operation—even in complete darkness, the camera is completely invisible.

WiFi Remote Monitoring

Modern smoke detector cameras connect to your home WiFi network and stream live video to your smartphone through a companion app. Key capabilities to look for:

– Live streaming: View real-time video from anywhere with internet access

– Motion alerts: Receive push notifications when motion is detected

– Cloud recording: Automatic cloud backup of motion-triggered clips

– Two-way audio: Some models include microphones and speakers for remote communication

– Multi-device support: Allow multiple family members to view simultaneously

Popular app platforms include Tuya Smart, YCC365 Plus, and proprietary manufacturer apps. Tuya Smart is the most widely supported and reliable platform.

Power Options

Smoke detector cameras offer three power configurations:

Battery powered: Typically 5,000–10,000mAh built-in rechargeable battery. Provides 3–10+ hours of recording. Requires periodic recharging—factor in your monitoring schedule.

USB powered: Device connects to a USB power adapter via cable, providing unlimited power. The cable must be routed down a wall or hidden somehow, which limits installation flexibility.

AC hardwired: Premium installation option. Camera connects to the home’s electrical system via the ceiling junction box, providing permanent unlimited power with no visible cables.

For most home users, battery power with a large-capacity battery (10,000mAh+) is the most practical solution, providing days of recording between charges.

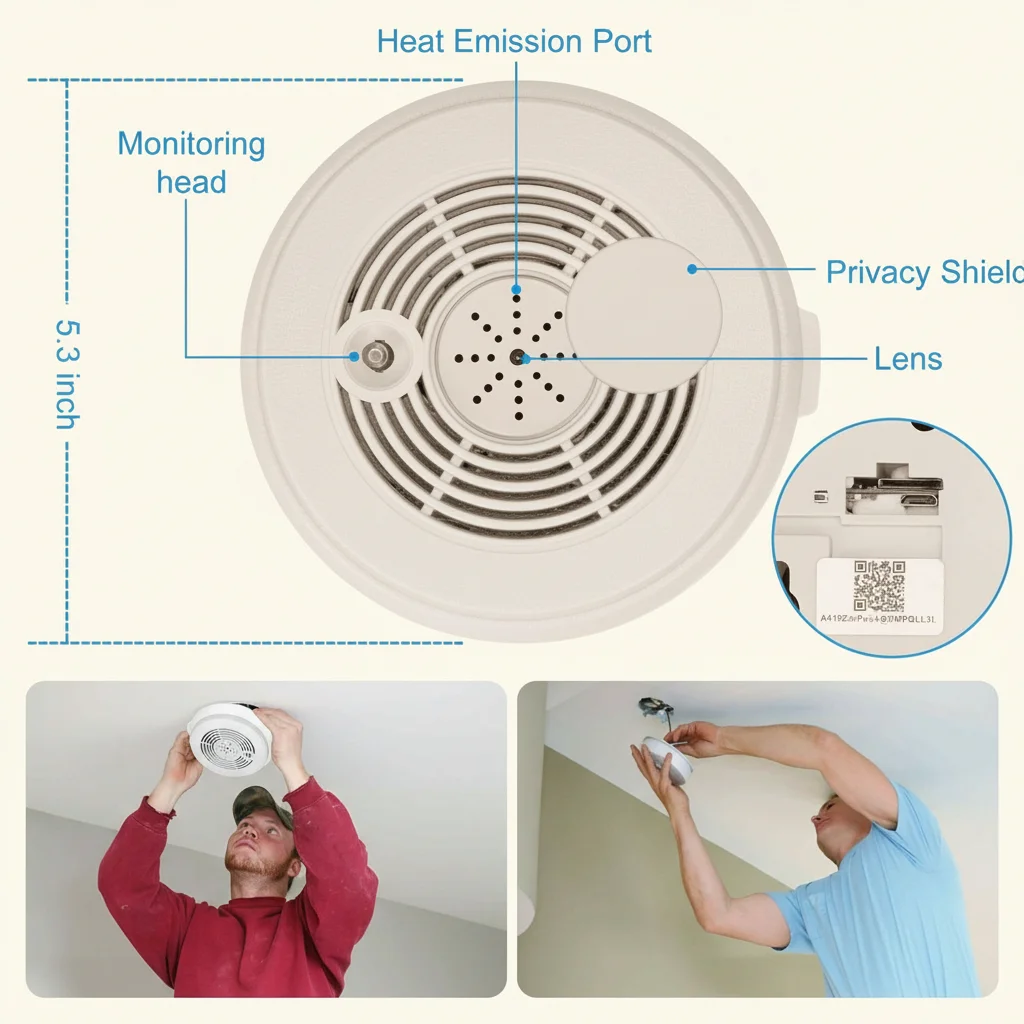

How to Install a Smoke Detector Hidden Camera

Installation takes 10–30 minutes depending on the power method chosen.

Tools needed:

– Power drill (for hardwired models)

– Small screwdriver

– Ladder or step stool

– Level (optional, for precise alignment)

Battery-Powered Installation

1. Choose the location: Center of the ceiling provides maximum room coverage. Position the camera directly above the area you most need to monitor.

2. Attach the mounting base: Remove the camera’s mounting bracket. Hold it against the ceiling and mark the screw holes with a pencil. Drill pilot holes if needed. Screw the bracket to the ceiling.

3. Connect the camera body: Snap or screw the camera body onto the mounting bracket.

4. Check the viewing angle: From below, look up at the camera and confirm the lens is pointing in the desired direction.

5. Power on: Turn on the camera per the manufacturer’s instructions.

6. Complete WiFi setup: Follow the app instructions to connect the camera to your WiFi network.

USB-Powered Installation

Same as battery installation, plus:

– Route the USB cable along the ceiling edge and down a wall corner to a USB power adapter

– Use cable clips or raceways to conceal the cable against the wall

– The white cable against a white ceiling is relatively inconspicuous at normal viewing height

Setting Up Remote Monitoring

After physical installation, configure remote monitoring:

Step 1: Download the companion app (Tuya Smart, YCC365, or the brand’s app)

Step 2: Create an account and log in

Step 3: Tap “Add Device” and follow the WiFi pairing instructions. You typically need to:

– Hold the camera’s reset button until the indicator light blinks rapidly (indicating pairing mode)

– Select your home WiFi network in the app

– Enter your WiFi password

Step 4: Name the camera and assign it to a room

Step 5: Configure motion detection sensitivity and notification preferences

Step 6: Test by walking under the camera and verifying motion alerts appear on your phone

Once configured, you can view live video, review stored clips, and adjust settings from anywhere in the world via the app.

Optimal Placement Strategies

Living Room: Center ceiling placement covers the entire room. Position slightly toward the main seating area or entrance for optimal coverage.

Bedroom: Install above the bed area (for nanny/childcare monitoring) or near the entrance (for general security). Note: some jurisdictions have restrictions on recording in bedrooms—check local laws.

Home Office: Position to capture both the workspace and the room entrance for complete coverage.

Entryway/Hallway: Mount at the end of a hallway to capture everyone entering and exiting. Narrow hallways may allow a less wide-angle lens to be effective.

Nursery: Ceiling mounting in a nursery provides perfect overhead monitoring of a crib or play area. Ideal for professional nanny cameras due to the complete room coverage.

Intelligent Analytics Features

Premium smoke detector cameras include AI-powered analytics features:

Person Detection: Distinguishes between human motion and other movement (fans, pets, curtains blowing). Reduces false alerts dramatically.

Face Recognition: Some models can log who enters/exits a room and notify you of unrecognized faces.

Cross-Line Detection: Alerts when someone crosses a defined line in the camera’s view—useful for doorways and stairways.

Zone-Based Motion: Define specific areas of the frame where motion triggers alerts, ignoring the rest. Useful for monitoring a desk or safe without triggering alerts from people walking across the room.

Advanced Setup Tips

Angle adjustment: Some smoke detector cameras allow lens angle adjustment within the housing. Tilt the lens slightly toward the area of greatest interest rather than pointing straight down.

Storage strategy: Use both local SD card and cloud storage. Local storage provides continuous backup even when internet is down; cloud storage provides off-site backup if the device is tampered with.

WiFi signal strength: Ceiling mounting can sometimes have slightly weaker WiFi signal than table-level placement. If signal is weak, consider a WiFi extender near the installation point.

Motion detection zones: Configure the camera’s motion detection zone to exclude high-traffic areas (like a frequently used doorway) if constant alerts are unwanted.

Legal and Privacy Considerations

Installing a hidden camera requires understanding applicable laws:

In your own home: You generally have broad rights to monitor your own property, including with hidden cameras in common areas.

Rental properties as a landlord: Laws vary. Many jurisdictions require tenant notification of surveillance. Some prohibit covert cameras in rental units entirely. Consult local law before installation.

Nanny/caregiver monitoring: Generally legal in most US states and many countries when cameras are in common areas. Some jurisdictions require informing the caregiver.

Audio recording: Many places require all-party consent for audio recording. If concerned about compliance, some cameras allow disabling the microphone for video-only recording.

Private spaces: Cameras in bathrooms, changing rooms, or similar private spaces are illegal virtually everywhere.

Frequently Asked Questions

Q: Does a smoke detector camera actually detect smoke?

A: The majority of smoke detector spy cameras are cosmetic replicas—they don’t function as real smoke detectors. They’re designed to look like smoke detectors, not replace them. Never remove real smoke detectors to install spy cameras in their place without installing proper smoke detection elsewhere.

Q: How wide is the camera’s field of view from the ceiling?

A: With a 120-degree lens from an 8-foot ceiling, the camera covers roughly a 15×15 foot area. With a 160-degree wide-angle lens from the same height, coverage expands to 20×20 feet or more.

Q: Can I view recordings from a week ago?

A: With cloud storage subscription, yes—recordings are typically kept for 7–30 days depending on the subscription tier. With SD card-only recording, you can access any footage stored on the card until it’s overwritten by loop recording.

Q: Will the camera work if my WiFi goes down?

A: If using SD card recording, the camera continues recording locally regardless of WiFi status. Remote viewing and cloud backup require WiFi/internet connectivity. Local recordings are always available.

Q: How do I recharge a battery-powered model?

A: Remove the camera body from the ceiling mount and connect it to a USB charger. Charging typically takes 3–5 hours for a full charge on large-capacity batteries.

Conclusion

A smoke detector hidden camera provides the most natural ceiling-mounted surveillance solution available. The universal presence of smoke detectors in every home and building makes them completely inconspicuous, while the ceiling position provides unmatched room coverage. With WiFi remote monitoring, wide-angle night vision, AI-powered motion detection, and multiple power options, modern smoke detector cameras are sophisticated, effective home security tools.

When selecting a model, prioritize wide-angle lens coverage (120–160 degrees), night vision quality (940nm for true covert operation), WiFi platform reliability (Tuya Smart is recommended), and power capacity appropriate for your monitoring schedule. Properly installed and configured, a smoke detector hidden camera provides around-the-clock, completely discreet home security monitoring.
