Le principe de fonctionnement d'une caméra espion : comment les caméras cachées capturent des images

Understanding how a spy camera works is not just a technical exercise — it is a purchasing decision. Every specification on every product listing describes a technical tradeoff, and you can only evaluate those tradeoffs intelligently if you know what is happening inside the device.

This guide explains the complete signal path inside a modern spy camera: how light becomes a digital image, how that image is processed and compressed, how it is stored or transmitted, and how the power system keeps everything running. It draws on real technical specifications from forum discussions, engineering resources, and what experienced buyers actually check when evaluating a camera.

Table des matières

1. The Core Components: What Every Spy Camera Contains

2. The Signal Path: How Light Becomes Footage

3. Image Sensors: CMOS vs CCD and Why It Matters

4. Lens Systems and Field of View

5. Image Processing and Compression

6. Recording Modes: Continuous, Motion-Triggered, and Scheduled

7. Night Vision: How Infrared Illumination Works

8. Storage: microSD, Cloud, and the Chain of Custody

9. Wireless Transmission: Wi-Fi and the Real Cost of Connectivity

10. FAQ

---

1. The Core Components: What Every Spy Camera Contains

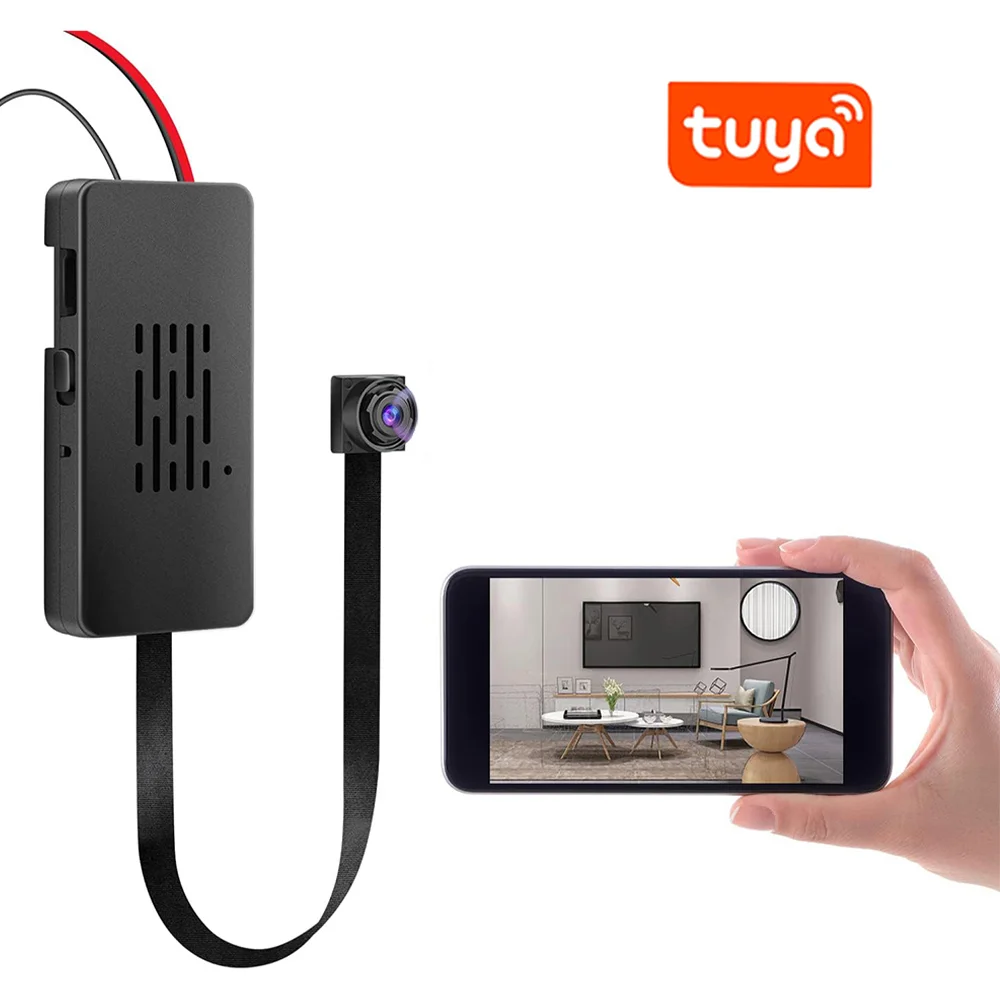

Every spy camera — regardless of its disguise form factor — contains the same fundamental building blocks. The only difference is how those components are packaged and powered.

The five core components:

Composant	Fonction	Key Specification to Check
Lentille	Collects and focuses light onto the sensor	Focal length (mm), aperture (f-number), field of view
Image sensor	Converts photons to electrical signals	Sensor type (CMOS/CCD), size (1/4″–1/2.8″), resolution (MP)
Image processor (ISP)	Processes raw sensor data; handles compression	Chipset model; H.264 vs H.265 support
Storage module	Records video to local or cloud storage	Max microSD capacity; cloud provider
Power system	Supplies regulated voltage to all components	Battery capacity (mAh); USB passthrough; power consumption

The lens and sensor together determine image quality. Everything else determines whether that image is usable: stored correctly, transmitted reliably, and powered consistently.

---

2. The Signal Path: How Light Becomes Footage

The complete signal path from scene to recorded footage follows this chain:

“`

SCENE → LENS → IMAGE SENSOR → ISP (Image Signal Processor) → COMPRESSION → STORAGE/TRANSMISSION

“`

Here is what happens at each stage:

Stage 1 — Lens focusing: Light from the scene passes through the lens, which focuses it onto the sensor surface. The quality of the lens — its focal length, aperture, and optical coatings — determines how much light reaches the sensor and how accurately the image is formed.

Stage 2 — Photon to electron conversion: The image sensor contains a grid of photosensitive pixels. Each pixel accumulates an electrical charge proportional to the light intensity at that point. The exposure time (shutter speed) determines how much light is collected — longer exposure means more light but also more motion blur.

Stage 3 — Analog to digital conversion: The sensor outputs an analog signal proportional to the accumulated charge at each pixel. This is converted to a digital signal by an ADC (analog-to-digital converter), typically 10–12 bits per pixel in modern sensors.

Stage 4 — ISP processing: The raw digital image passes through the Image Signal Processor, which applies:

– Demosaicing (reconstructing colour from the Bayer pattern)

– White balance correction

– Noise reduction

– Exposure and gamma correction

– Colour space conversion

Stage 5 — Compression: The processed image is compressed using a video codec (H.264 or H.265 are standard) to reduce file size before storage or transmission.

Stage 6 — Storage or transmission: The compressed video stream is either written to a local microSD card or streamed over Wi-Fi/4G to a cloud server.

> L'objectif est le composant le plus négligé dans les caméras grand public. Un objectif en plastique $5 avec un capteur 2MP produira des images de moins bonne qualité qu'un objectif en verre $5 avec le même capteur. Vérifiez toujours si le fabricant spécifie “ objectif en verre ” ou “ verre optique ” dans les spécifications.

> — Discussion du forum technique sur l'équipement de sécurité, 2024

---

3. Capteurs d'image : CMOS vs CCD et pourquoi c'est important

Presque toutes les caméras espionnes grand public modernes utilisent Capteurs CMOS (semi-conducteur à oxyde de métal complémentaire). Les capteurs CCD (Dispositif à Couplage de Charge), autrefois la norme pour la vidéo professionnelle, ont été presque entièrement remplacés dans les caméras grand public en raison de leur consommation d'énergie plus élevée et de leur coût de fabrication.

Fonctionnement des capteurs CMOS :

Un capteur CMOS utilise une structure de pixel actif où chaque pixel photosensible contient son propre circuit d'amplification. Lorsque la lumière frappe le pixel, la photodiode génère des électrons qui sont immédiatement convertis en tension et lus par des convertisseurs analogique-numérique parallèles par colonne. Cette architecture permet :

– Faible consommation d'énergie — crucial pour les caméras espionnes alimentées par batterie

– Vitesses de lecture rapides — permettant une vidéo à 30 images par seconde ou plus en 1080p

– Fonctionnalités intégrées au circuit — contrôle d'exposition automatique, balance des blancs et réduction du bruit

La question de la taille du capteur : La taille du capteur est mesurée en fractions de pouce (par exemple, 1/2,8″, 1/3″, 1/4″). Les capteurs plus grands capturent plus de lumière par pixel, produisant une meilleure qualité d'image en basse lumière. La relation n'est pas linéaire — un capteur de 1/2,8″ a environ 1,5 fois la surface de collecte de lumière d'un capteur de 1/4″ — mais la différence pratique est notable dans des conditions d'éclairage difficiles.

Taille du capteur	Résolution typique	Performances en faible luminosité	Coût
1/4″	1–2MP	Basic	Faible
1/3″	2–3MP	Bien	Modéré
1/2,8″	2–4MP	Très bon	Modérée–Élevée
1/2″ (professionnel)	4–8MP	Excellent	Haut

Modèles de capteurs à connaître :

Le Sony IMX323 et IMX307 sont les chevaux de bataille du marché des caméras discrètes de milieu de gamme. Les deux sont des capteurs de 1/2,8 pouce avec une résolution véritable de 1080p (2MP). L'IMX307 utilise une architecture de pixels rétro-éclairés (BSI), ce qui améliore considérablement la sensibilité en basse lumière par rapport aux capteurs à éclairage frontal de même résolution.

> Le capteur BSI IMX307 de Sony fournit des images couleur utilisables à moins de 1 lux — ce qui équivaut à peu près à une pièce éclairée uniquement par les lampadaires à travers les rideaux. À ce niveau de lumière, un capteur frontal économique produit des séquences presque noires avec un bruit de couleur significatif.

> — Documentation produit de Sony Semiconductor Solutions

---

4. Systèmes d'objectifs et champ de vision

L'objectif détermine ce que la caméra voit — spécifiquement, son champ de vision (FOV) et sa capacité à fonctionner dans différentes conditions d'éclairage.

Longueur focale et champ de vision :

Longueur focale	Champ de vision horizontal (capteur 1/3″)	Idéal pour
2,8 mm	~80°	Couverture de pièce ; surveillance générale
3,6mm	~65°	Surveillance ciblée ; points d'entrée/sortie
4mm	~55°	Medium-distance; specific area focus
6mm+	<45°	Long-distance; narrow corridor focus

Most consumer spy cameras use a fixed-focal-length lens in the 2.8–3.6mm range, which provides a wide enough field of view for typical indoor applications. Some models offer interchangeable lens modules or adjustable-focus lenses for specific use cases.

Aperture (f-number): The aperture, expressed as an f-number (e.g., f/2.0, f/2.8), describes how much light the lens can gather. A lower f-number means a wider aperture, which means more light reaches the sensor. In practical terms: f/2.0 captures roughly twice as much light as f/2.8. For covert cameras that need to record in low-light conditions without triggering visible infrared illumination, a wide aperture is essential.

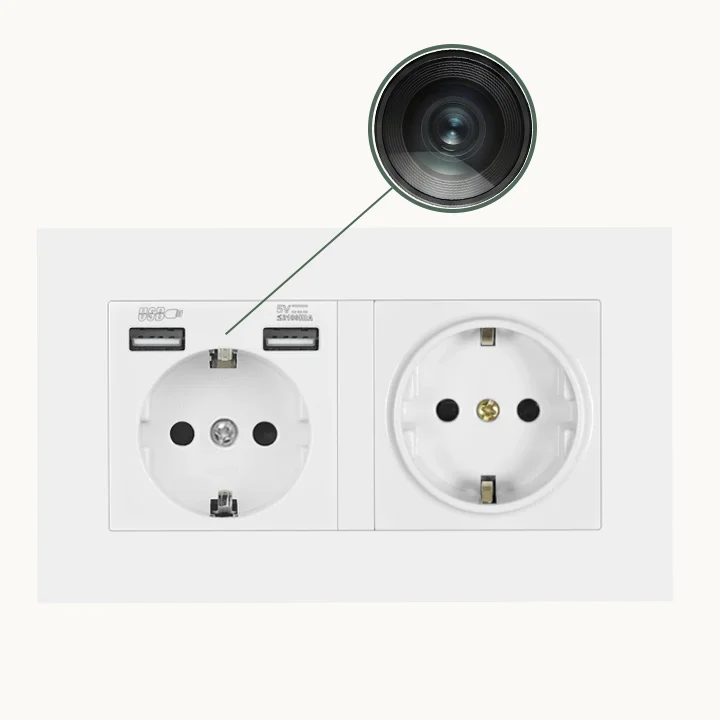

The pinhole lens challenge: Spy cameras that need to hide behind very small openings (behind a wall socket, inside a button) use pinhole lenses — tiny lenses with a very small aperture opening. While this enables extreme concealment, it significantly reduces light-gathering ability. The result is cameras that perform well in bright conditions but struggle below approximately 50 lux of ambient illumination.

---

5. Image Processing and Compression

The ISP (Image Signal Processor) does more than just convert raw sensor data into a viewable image. Modern ISPs in spy cameras perform:

Noise reduction: In low-light conditions, the sensor signal contains significant noise. The ISP applies algorithms — typically a combination of spatial and temporal noise reduction — to clean up the image. Aggressive noise reduction can introduce “smearing” artefacts on moving objects; conservative noise reduction preserves detail but leaves visible grain.

Wide dynamic range (WDR): When a scene contains both very bright and very dark areas (a window-lit room, for example), the ISP can apply WDR processing to preserve detail in both areas simultaneously. Entry-level cameras often lack true WDR and must choose between a correctly exposed interior or a correctly exposed exterior.

H.264 versus H.265 compression:

Codec	Compression Efficiency	Bandwidth Requirement	Compatibilité
H.264	Standard	2–4 Mbps for 1080p	Universal
H.265 (HEVC)	~40% more efficient	1.2–2.5 Mbps for 1080p	Growing; some older devices lack support

For Wi-Fi spy cameras, H.265 compression provides a meaningful advantage: the same image quality at lower bandwidth, which means more reliable remote viewing on slower connections. However, H.265 encoding requires more processing power and is not supported by all playback software and mobile devices.

---

6. Recording Modes: Continuous, Motion-Triggered, and Scheduled

Modern spy cameras offer three distinct recording modes, each with specific power and storage implications.

Enregistrement continu : The camera records constantly to its storage medium. This produces the most complete footage record but places maximum stress on storage and power systems. A 1080p camera recording continuously at 4Mbps consumes approximately 1.7GB of storage per hour and draws maximum power continuously.

Motion-triggered recording (PIR or software-based): The camera detects movement within its field of view and begins recording automatically. This mode dramatically reduces storage consumption — typically by 70–90% compared to continuous recording for a typical domestic or office environment — and extends battery life significantly.

Two detection methods are used:

– PIR (Passive Infrared): Detects heat signatures from people, animals, and vehicles. More accurate than software-based detection; less prone to false positives from light changes. PIR sensors in consumer cameras typically detect movement at 3–5 metres.

– Software-based motion detection: Analyses successive frames from the image sensor to detect pixel changes. More sensitive to small movements (insects, light changes, dust) but requires more processing power.

Scheduled recording: The camera records only during pre-configured time windows. This is useful for monitoring predictable patterns — a caretaker’s shift, an office outside business hours, a rental property between tenancies.

---

7. Night Vision: How Infrared Illumination Works

Human eyes cannot see infrared light, but image sensors can — and this is the foundation of covert night vision.

The infrared spectrum:

Taper	Wavelength	Human Visibility	Spy Camera Use
Visible red	700nm	Red glow visible	Not used
Standard IR	850nm	Faint red glow in darkness	Consumer cameras; detection risk
No-glow IR	940nm	Complètement invisible	Covert cameras; military-grade
Far IR	>1000nm	Invisible	Specialized thermal cameras

How IR night vision works in practice:

1. The camera’s IR LED array emits infrared light at the target wavelength

2. The light reflects off objects in the scene

3. The image sensor — which is sensitive to IR wavelengths invisible to humans — captures the reflected IR light

4. The ISP processes the IR image and converts it to a monochrome visible image

Range and effectiveness: The effective range of IR illumination depends on three factors: LED power (measured in watts or number of LEDs), wavelength, and the reflectivity of the target surface. A single 850nm LED at 3mW provides effective illumination at approximately 3–5 metres. Multi-LED arrays with 940nm emitters extend this to 8–15 metres in typical indoor environments.

> “The 850nm red glow is detectable by anyone who looks at the camera in a dark room. In a surveillance context, this is the equivalent of leaving a lit cigarette on the table — it completely defeats the purpose of a covert camera.”

> — Technical analysis, surveillance equipment forum, 2024

What affects night vision quality:

The IR illumination uniformity is as important as its intensity. Cheap cameras with a single high-power IR LED produce uneven illumination — bright in the centre, dark at the edges. Multi-LED arrays produce more even coverage but at higher manufacturing cost.

---

8. Storage: microSD, Cloud, and the Chain of Custody

Storage is where footage becomes evidence — or disappears.

Local microSD storage:

Capacité de la carte	Recording Time (H.264 1080p @ 4Mbps)
32 Go	~18 heures
64 Go	~36 heures
128GB	~72 hours (3 days)
256GB	~144 hours (6 days)

Loop recording — where the oldest footage is automatically overwritten when the card fills — is standard on virtually all modern covert cameras. This ensures continuous operation without manual card management.

Critical storage note: The microSD card is the most failure-prone component in any camera system. Card failure rates increase with write cycles (more frequent with motion-triggered recording), temperature extremes, and physical shock. Professional installations use industrial-grade or high-endurance consumer cards specifically rated for continuous write applications.

Cloud storage: Wi-Fi cameras with cloud subscription provide remote access to footage from any device, automatic backup, and protection against local storage failure. Cloud subscription costs typically run $3–$8/month depending on the provider and storage duration. The tradeoff: all footage passes through the provider’s servers, which has GDPR and data sovereignty implications for EU deployments.

The chain of custody question: For footage to be legally useful, its authenticity must be verifiable. This requires either:

– Local SD storage with tamper-evident packaging, or

– Cloud storage with cryptographic timestamp verification

Most budget cameras do not provide any mechanism for proving footage authenticity — a fact that is increasingly relevant as courts become more sophisticated about digital evidence standards.

---

9. Wireless Transmission: Wi-Fi and the Real Cost of Connectivity

Wi-Fi connectivity enables remote viewing — but it introduces latency, bandwidth requirements, and a dependency on the camera manufacturer’s server infrastructure.

Wi-Fi specifications that matter:

Spécification	What It Means	Pourquoi c'est important
Frequency band	2.4GHz vs 5GHz	2.4GHz has longer range; 5GHz has more bandwidth and less interference
802.11 standard	n, ac, or ax	802.11ax (Wi-Fi 6) handles congestion better; most budget cameras are 802.11n only
Streaming protocol	RTSP vs P2P vs cloud	RTSP: low latency but requires router configuration. P2P/cloud: works through NAT but has latency

The latency reality: All consumer Wi-Fi cameras introduce latency between the live event and what the viewer sees on their phone. Typical latency for P2P/ cloud-streamed cameras is 1–3 seconds. RTSP cameras can achieve sub-1-second latency with proper configuration. Cameras marketed as “zero latency” are using direct local preview, not true live streaming.

RF detection reality: It is a persistent myth that Wi-Fi cameras cannot be detected. Any device transmitting on a Wi-Fi network can be identified by a network scanner — even when the SSID is hidden. Apps like Fing reliably detect all Wi-Fi cameras on a local network within seconds. For scenarios where absolute RF silence is required, only cameras with local SD-only storage (no Wi-Fi, no RF transmission) provide genuine invisibility.

---

10. FAQ

What is the difference between CMOS and CCD sensors in spy cameras?

CMOS sensors dominate virtually all modern consumer spy cameras because they consume less power, cost less to manufacture, and enable faster readout speeds than CCD alternatives. Within CMOS, back-illuminated (BSI) sensors like the Sony IMX307 capture significantly more light per pixel, delivering better low-light performance than front-illuminated sensors at the same resolution.

How does motion detection work in a spy camera?

Most consumer spy cameras use one of two methods: PIR (Passive Infrared) sensors, which detect the heat signatures of people and animals, or software-based motion detection, which analyses pixel differences between successive video frames. PIR is more accurate for human detection but has a shorter range (typically 3–5 metres). Software-based detection is more sensitive to all types of movement but generates more false positives from environmental changes.

Why do some spy cameras perform poorly at night despite having infrared LEDs?

Three reasons explain most night vision failures: low-power 850nm LEDs with limited range; uneven LED distribution creating bright spots and dark shadows; and inadequate ISP noise reduction for IR images, producing grainy footage that loses fine detail. A camera with 940nm multi-LED arrays and a quality ISP consistently outperforms models with more LEDs but inferior supporting electronics.

Can a spy camera record continuously without overheating?

Most covert cameras are designed for intermittent use rather than continuous 24/7 recording in sealed enclosures. A clock camera with adequate ventilation and a stable USB power supply can run continuously without issue. Cameras inside enclosed objects (inside a pen body, behind a very small pinhole in a wall) may experience thermal throttling — reduced frame rate or temporary shutdown — if ambient temperature rises significantly.

What happens to footage when the camera’s SD card is full?

With loop recording enabled (the default on virtually all cameras), the oldest footage is automatically overwritten by new footage once the card reaches capacity. This ensures continuous operation without manual intervention. The risk is that important footage from the period just before a significant event may have been overwritten. For applications where footage preservation is critical, cloud backup with redundant storage is the only reliable solution.

---
